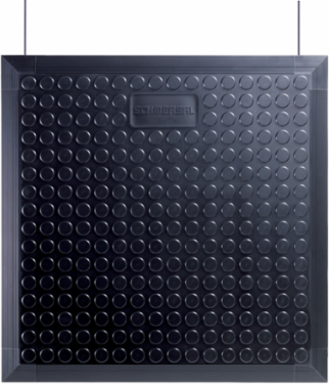

Schmersal 101208376 Safety-related Tactile Sensor, 1000 mm Width, 1500 mm Length, IP65, 1,000,000 Operations
- MPN: 101208376
- PPN: SCM-101208376
CAD
$1788.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safety-related Tactile Sensor, 1000 mm Width, 1500 mm Length, IP65, 1,000,000 Operations
Features
- with moulded ramp profile 30 mm
- Robust design
- Modular switching mat system
- Special sizes are available on request
- Maintenance free
- Simple mounting
- Slip-free surface
- High resistance to chemicals
- No additional terminating resistor required
- No additional baseplate
- 2 x 2-wire connecting cable
Documentation & Downloads
Specifications
Key Specifications
- Length
- 1,500 mm
- Height
- 14 mm
Width1,000 mm

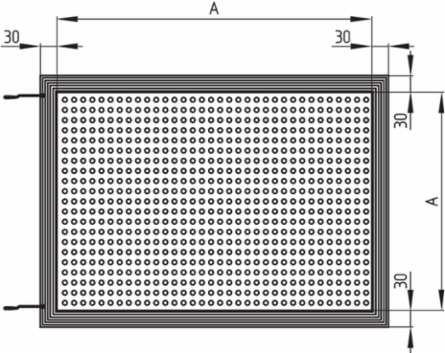

Mechanical data - Dimensions
- Width
- 1,000 mm
Height14 mm
General data - Features
- Cascadable
- Yes
General data
- Standards
- EN ISO 13849-1 | EN ISO 13856-1
- Shore hardness
- 78 ±5 A
- Grammage
- 26 kg/m
- Maintenance
- maintenance free | Annual maintenance is recommended.
Material of the surface/surface materialPolyurethane PUR
Gross weight46,000 g
Reaction time, maximum25 ms
Notes - Chemical resistance
- Material resistance (water)
- resistent
- Material resistance (10% lyes)
- resistent
- Material resistance (oil)
- resistent
Material resistance (10% acids)resistent
Material resistance (petrol)resistent
Safety classification
- Performance Level, up to
- d
- Safety Integrity Level (SIL), suitable for applications in
- 2
- Note (Category)
- To max. 52,000 switching cycles/year with max. 60% contact load; deviating applications on request.
Category3
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP65
Ambient temperature+0 ... +60 °C
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.34 mm
Length of cable6 m
Wire cross-section22 AWG
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Note (Actuating force)
- With round body Ø 80mm
- Notice (Admissable load)
- With round body Ø 80mm
Actuating force150 N
Admissable load20 N/mm |
Inactive border42 mm
Accessory
- Recommended safety switchgear
- SRB 301HC/R, | SRB 301HC/T
Approvals - Standards
- Certificates
- TÜV | cULus
