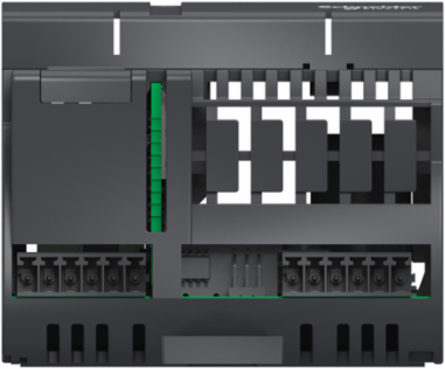

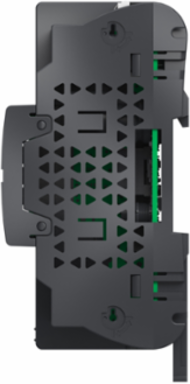

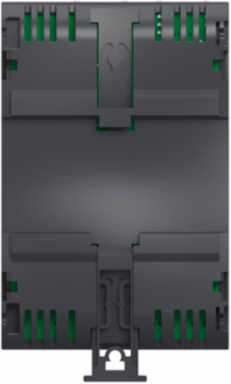

Schneider Electric TM172SIG M172 IIoT Secure Interface Gateway
- MPN: TM172SIG
- PPN: SCH-TM172SIG
CAD
$451.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

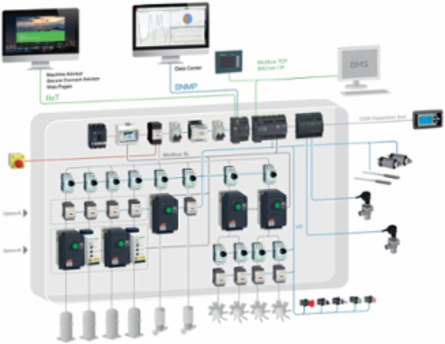

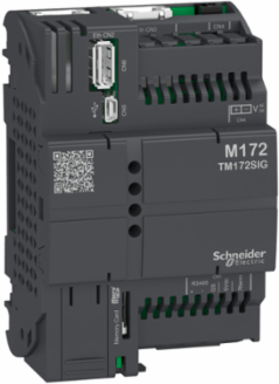

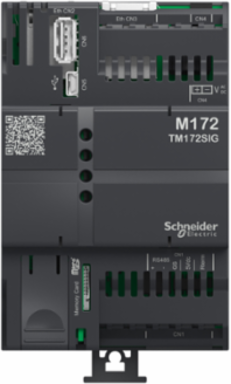

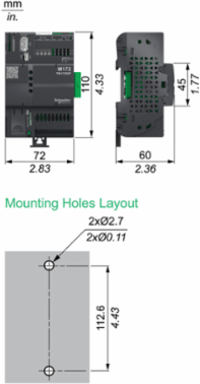

This Secure interface is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This IIoT Secure interface gateway is designed to establish a secure Internet connection and to connect unsafe devices to a secure Ethernet network. It runs on 24Vac 50/60 Hz or 20…38Vdc power supply and gets a double Ethernet port with switch capabilities. The Secure interface Gateway ensures a cyberSecure connection to M172 and M171 Optimized controllers, including Modbus devices. It is fit with a RS485 serial port, to communicate with a controller via Modbus RTU connection, and supplied with removable terminal blocks fbus connections. It figures a memory card slot (Micro SD), programmable LEDs (red, yellow, green) and power LED (green). Its size is 4 DIN. It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.165kg. The Secure interface Gateway ensures a cyberSecure connection to M172 and M171 Optimized controllers, including Modbus devices. The Secure Interface Gateway is certified CE, UL, CSA, EAC, RCM, UKCA. It is compatible with M172 and M171 Optimized controllers, and TM172AP12PM mounting accessory. It is sold in a 1-piece package. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Indonesia, Italy, Philippines
Depth72 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP/IP, HTTPS, FTPS, NTP, SMTPS, SNMP v2, SNMP v3, MQTT over TLS
Complementary Attributes
- Integrated Connection Type

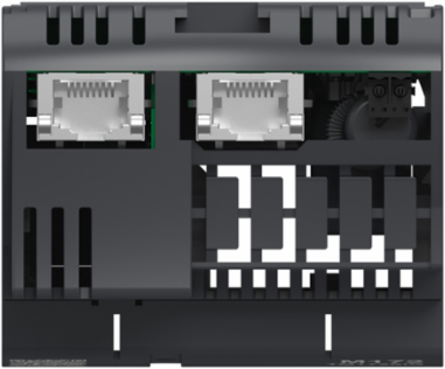

- 2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server1 USB (V2.0) port USB host port type A, 1 USB (V2.0) port USB device port type mini-B, RS485 1 removable 3-way screw connector - twisted shielded pairs cable
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- LED (green) for USER (programmable)LED (green) for power ONLED (red) for USER (programmable), LED (yellow) for USER (programmable)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06750339205923506, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004607479110297941, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 119 kg CO2 eq., 119.3991197020858
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Service Catalog Item
- Finished good
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2227
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Concept
- Modbus
- Overvoltage Category
- I
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M171/M172
- Shock Resistance
- 1 g 11 ms
- Supply
- external power supply
- Total Lifecycle Carbon Footprint
- 140 kg CO2 eq.
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To manage in a cybersecure way the data flow between Modbus RTU slave devices and FTPs/HTTPs/SMTPs/SNMP servers or Clouds and a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 262.8
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 60 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Certificate AgencycURus, CSA, EAC, CE, RCM, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5239881607089603
Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 20.161611281250398
Local Data StatusPublishable
Pre Comm Date2022-02-01
Stocking FlagN
Cr Shelf Life36
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Memory Descriptioninternal RAM 256 MBflash 512 MB
Power Consumption In W8 W
Product Or Component Typecommunication module
ReturnabilityYes
Software Versionv6.1
Sustainable PackagingNo
Transmission Rate10/100/1000 Mbps for connecting Ethernet network9600...115200 bauds RS485 link
UpgradeabilityYes
Pep CodeENVPEP2207003EN
Pep Verification Date2024-07-22
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Italy, IT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %8
Width Nominal110 mm
Package Weight(Lbs)212.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 140.1568300152147
- Environmental Disclosure
- ENVPEP2207003EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2207003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2207003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilitylogic controller M172
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-07-22
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- communication module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
Batteries & Runtime Attributes
- Removable Battery
- Yes
