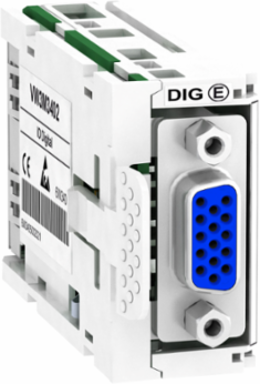

Schneider Electric VW3M3402 Lexium 32 Encoder Interface Module, 12V SSI, 5V A/B/I, 15-Way D-Sub Connector
- MPN: VW3M3402
- PPN: SCH-VW3M3402
- UNSPSC: 26111515
CAD
$280.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The interface card provides digital output for machine encoder. It is an interface card with a rated supply voltage of 12V for SSI encoder, 5V for A/B/I encoder, 5V for BISS encoder, 5V for EnDat 2.2 encoder. It is furnished with 15-way D-Sub (DE-15) female high definition connector for electrical connection. This product is compatible with Lexium 32M servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|
| Weight | 58 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 12 V SSI5 V A/B/I, 5 V BISS, 5 V EnDat 2.2 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Encoder Type | BISS, EnDat 2.2, A/B/I, SSI |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.03678338393291125 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.6081377528087586 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1407005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Electrical Connection | 1 female connector high definition SUB-D 15 |
| Product Or Component Type | encoder interface module |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2024-01 |
| Accessory / Separate Part Category | connection accessories |
| Accessory / Separate Part Type | card with digital output |
| Customs Code | 8538908180 |
| Functional Unit Description | To integrate communication functionalities to the LXM32 Controller 100% of the time for 10 years |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 131.4 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.00974375204388779, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.03692350276748688, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 92 kg CO2 eq., 92.49542199341025 |
| Local Publishable Date | 2026-08-06 |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium 32 |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 96 kg CO2 eq. |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | machine encoder |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 96.18701038496329 |
| Environmental Disclosure | ENVPEP1407005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Lexium 32M |
| Pep Code | ENVPEP1407005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1407005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-08-28 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | encoder interface module |
|---|
| Range Of Product | Lexium 32 |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
