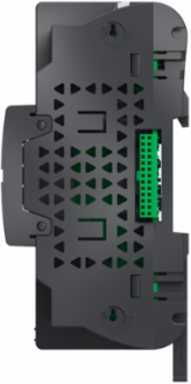

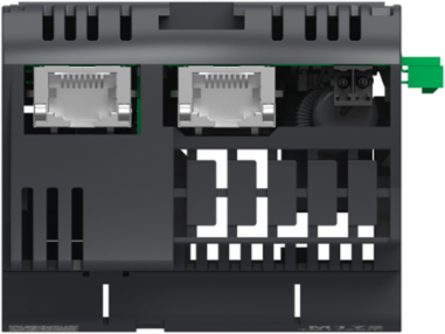

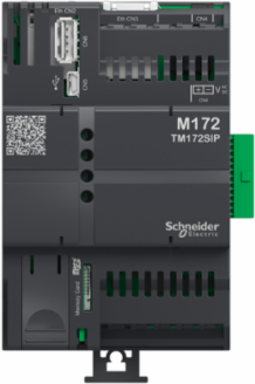

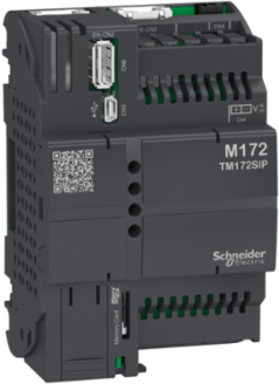

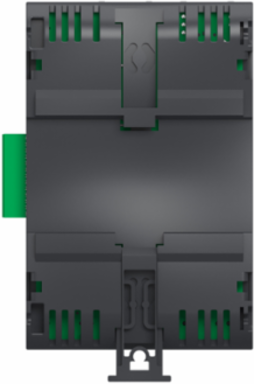

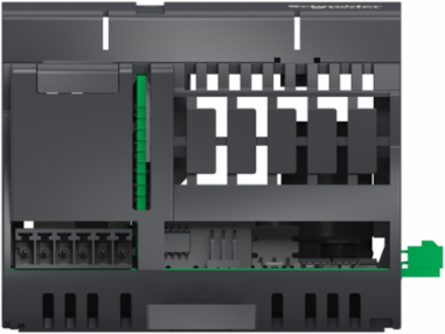

Schneider Electric TM172SIP M172 IIoT Secure Interface Plug-in
- MPN: TM172SIP
- PPN: SCH-TM172SIP
CAD
$377.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

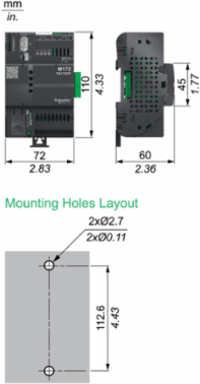

This Secure interface is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This IIoT Secure interface plug-in is designed to establish a secure Internet connection and to connect unsafe devices to a secure Ethernet network. It runs on 24Vac 50/60 Hz or 20…38Vdc power supply and gets a double Ethernet port with switch capabilities. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. It is fit with an integrated TTL communication port, to communicate with the controller, and supplied with removable terminal blocks fbus connection. It figures a memory card slot (Micro SD), programmable LEDs (red, yellow, green) and power LED (green). Its size is 4 DIN. It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.165kg. The Secure interface Plug-in allows M172 controller to secure connection via HTTPs to webserver, to secure email SMTPs, to secure file transport protocol FTPs. The Secure Interface Plug-in is certified CE, UL, CSA, EAC, RCM, UKCA. It is compatible with M172 controllers, and TM172AP12PM mounting accessory. It is sold in a 1-piece package. It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Finland, Indonesia, Italy, Philippines |
|---|
| Depth | 72 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus TCP/IP, HTTPS, FTPS, NTP, SMTPS, SNMP v2, SNMP v3, MQTT over TLS |
|---|
Complementary Attributes
| Integrated Connection Type | 2 Ethernet TCP/IP 2 x RJ45 in parallel - ethernet cable - embedded HTTPS server1 USB (V2.0) port USB host port type A, 1 USB (V2.0) port USB device port type mini-B |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | LED (green) for USER (programmable)LED (green) for power ONLED (red) for USER (programmable), LED (yellow) for USER (programmable) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.06761176906483475, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00461487643914475, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 119 kg CO2 eq., 119.3991197020858 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2207003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2227 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Concept | Modbus |
| Overvoltage Category | I |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M171/M172 |
| Shock Resistance | 1 g 11 ms |
| Supply | external power supply |
| Total Lifecycle Carbon Footprint | 140 kg CO2 eq. |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage in a cybersecure way the data flow between Modbus RTU slave devices and FTPs/HTTPs/SMTPs/SNMP servers or Clouds and a 100% of the time for 10 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 60 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Certificate Agency | cURus, CSA, EAC, CE, RCM, UKCA, UL 94 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.5248294261045939 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 20 kg CO2 eq., 20.1939808406469 |
| Local Data Status | Publishable |
| Pre Comm Date | 2022-02-01 |
| Stocking Flag | N |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Memory Description | internal RAM 256 MBflash 512 MB |
| Power Consumption In W | 8 W |
| Product Or Component Type | communication module |
| Returnability | Yes |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Transmission Rate | 10/100/1000 Mbps for connecting Ethernet network |
| Upgradeability | Yes |
| Pep Code | ENVPEP2207003EN |
| Pep Verification Date | 2024-07-22 |
| Psr Version | No PSR |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | 110 mm |
| Package Weight(Lbs) | 216.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-55 °C, -20-55 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 140.19015661434128 |
| Environmental Disclosure | ENVPEP2207003EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2207003EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2207003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | logic controller M172 |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2024-07-22 |
| Psr Version | No PSR |
General Attributes
| Product Or Component Type | communication module |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|
| ETIM 9 | EC001423 |
|---|
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
