SelecTone 15W Amplified Speaker, Explosion-Proof, UL and cUL CID1, 24VAC/DC, Gray
Federal Signal

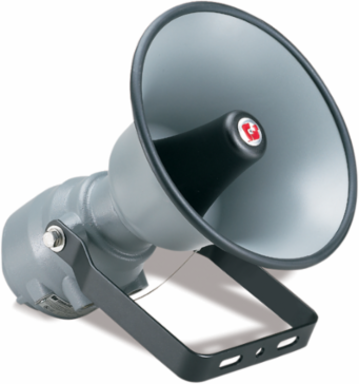

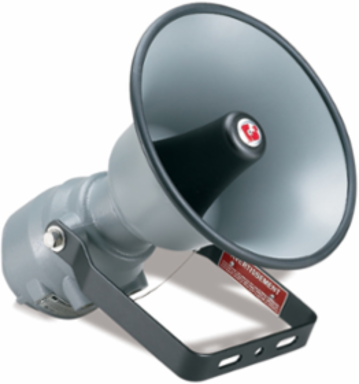

Federal Signal 300X-024 SelecTone 15W Amplified Speaker, Explosion-Proof, UL and cUL CID1, 24VAC/DC, Gray

  • MPN: 300X-024
  • UPC: 782979200604
  • PPN: FDS-300X-024
  • UNSPSC: 46171602
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Model 300X SelecTone® Amplified Speaker is designed to meet UL 1480 intelligibility requirements producing crisp, clear tones, digital voice messages and live public address in harsh environments with high ambient noise levels.All surfaces are sealed with powder-coat paint and assembled with stainless steel hardware. Dust- and moisture-proof gaskets provide protection from the elements. This housing incorporates a tool-less rear cover design, eliminating the need for torque specific hardware and solves the problem of missing or lost fasteners.SelecTone Amplified Speakers are used individually or as part of a plant-wide emergency notification system. Model UTM Universal Tone Module with 32 tones, or model TM33-SD Custom Tone Module is plugged into a single SelecTone Amplified Speaker for stand-alone use or into a SelecTone Command Unit for plant-wide signaling.For plant-wide signaling, a Connector Kit is required for each SelecTone Amplified Speaker and wired to a central controller. SelecTone Command Units and CommCenter® Digital Message Centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone Amplified Speakers.Applications for SelecTone include emergency warning, plant evacuation, start and dismissal, public address, and process control.

Features

  • Available in 24VAC/DC and 120/240VAC
  • Digital Signal Amplification
  • Cast copper free aluminum housing, spun aluminum projector
  • Built-in gain control, adjustable between 0 dBa to 110 dBa @ 10' (0 dBa to 120 dBa @ 1m)
  • Fused input and output
  • Indoor/outdoor use
  • Type 4X, IP66 enclosure
  • CSFM Approved
  • UL and cUL listed for Class I, Division 1, Groups B, C, and D; Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Gray
dBa 1 Meter
120
Availability
In Stock - Ships in 2 Bus Days
Operating Current Amps
0.76(VDC)/1.1(VAC)
Standby Current
127 mA @ 24VDC/305 mA @ 24VAC
Depth
17.0 in, 43.18 cm
Width
31.1 in, 78.994 cm
Weight15.4 lbs
Certification ListingCSFM, UL, cUL
dBa 10 Ft110
Mount TypeSurface
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Audible Signals Voltage24VAC/DC
Height17.0 in, 43.18 cm
