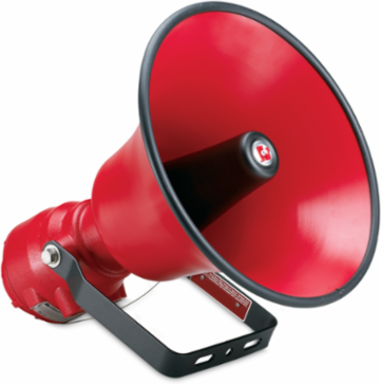

Federal Signal ASHX-024 Amplified Speaker, 15W, Supervised, Explosion-Proof, UL and cUL CID1, UL Fire, 24VDC, Red

Amplified Speaker, 15W, Supervised, Explosion-Proof, UL and cUL CID1, UL Fire, 24VDC, Red
  • MPN: ASHX-024
  • UPC: 782979213888
  • PPN: FDS-ASHX-024
  • UNSPSC: 46171602

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Federal Signal’s Models ASHX and ASUX Explosion-Proof Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both models are compatible with fire alarm, voice evacuation, suppression supervised control panels, and power boosters.These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust- and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with red powder coat paint.

Features

  • 15 watt (ASHX) or 30 watt (ASUX)
  • 24VDC
  • Built-in gain control
  • Four wire supervisable power circuit
  • Swivel mount bracket
  • Type 4X, IP66 enclosure
  • CSFM Approved
  • UL and cUL listed for Class I, Division 1, Groups B, C and D; Class I, Division 2, Group A, B, C, and D; Class II, Division 2, Groups F and G; Class III
  • ASHX and ASUX UL Fire Listed

Specifications

Specifications

Country of Origin
United States
Body Color
Red
dBa 1 Meter
105
Availability
Available in 4-6 weeks
Operating Temp.
-40˚ to +150˚F (-40˚ to +66˚C)
Watts
15
Depth
17.0 in, 43.18 cm
Width
31.1 in, 78.994 cm
Weight15.4 lbs
Certification ListingCSFM, UL, UL Fire
dBa 10 Ft95
Operating Current Amps0.7
Operating Voltage24 Vdc
Audible Signals Watts15
Height17.0 in, 43.18 cm

Downloads
