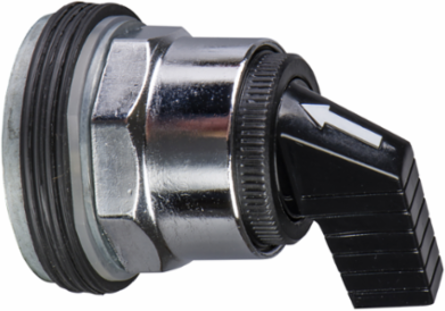

Harmony Selector Switch, 30mm, Metal, 2 Positions, Spring Return
Schneider Electric

Schneider Electric 9001KS34FBH13 Harmony Selector Switch, 30mm, Metal, 2 Positions, Spring Return

  • MPN: 9001KS34FBH13
  • UPC: 785901126195
  • PPN: SCH-9001KS34FBH13
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • CAD

    $189.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony 9001K, black selector switch with long handle and D cam has 2 positions, operates with spring return from right position mechanism. It has a chromium-plated metal bezel, it uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Range Of Product
    Harmony 9001K
    Type Of Operator
    right to left spring return
    Device Short Name
    K
    Operator Profileblack long handle
    Product Or Component Typeselector switch

    Complementary

    Connections - Terminals
    screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    Bezel Material
    metal
    Product Compatibility
    9001KA1 side 2
    Mounting Diameter
    30 mm
    Type Of Operator
    spring return
    Cap/Operator Or Lens Colour
    black
    Device Presentation
    complete product
    Contacts Type And Composition1 C/O
    Cam Profile4
    Operator Position Information2 positions
    Operator Profilelong handle
    Returnright to left
    Size30 mm

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP121006EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Weee
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Environment

    Product Certifications
    CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
    Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
