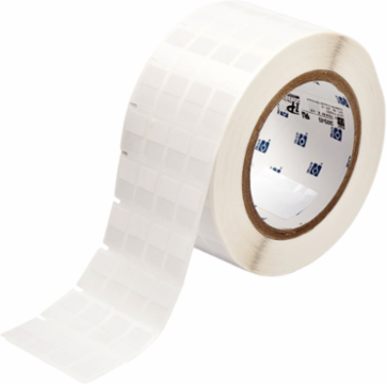

Brady THT-80-417-5 Self-laminating Vinyl Labels, 0.75 in H x 0.5 in W Clear/White Roll of 5000
Brady THT-80-417-5 Self-laminating Vinyl Labels, 0.75 in H x 0.5 in W Clear/White Roll of 5000
- MPN: THT-80-417-5
- UPC: 754473615567
- PPN: BRD-THT-80-417-5
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$280.23/ EA
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Specifications
Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; i7100; i5100
- Quantity per Row
- 4
- Recommended Ribbon Series
- R4300; R4500; R6200
- Shape
- Rectangle
- Total Qty per Pack
- 5000 Label(s) / Roll
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-417
- Material
- Self-laminating Vinyl
- Overlaminate Included
- Overlaminate Included
- SAP B-Number
- B-417
- Dimensions
- 0.75 in H x 0.5 in W
- Dimensions 2
- 0.75 in H x 0.5 in W
- Height (mm/cm/m)
- 19.05 mm
- Horizontal Repeat (mm)
- 15.24 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.12 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.1 in
- Printable Area Dimensions (Metric)
- 9.53 mm H x 12.70 mm W
- Printable Area Width (mm/cm/m)
- 12.70 mm
- Size - Width (mm)
- 12.70 mm
- Thickness (mm/cm/m)
- 0.107 mm
- Vertical Repeat (mm)
- 24.13 mm
- Web Width (mm/cm/m)
- 63.50 mm
- Wire Diameter Range
- 0.1 in to 0.12 in
Brand NameBrady®
Compatible Surface TypesCurved
DiagramIcon 4 (D with centre dot)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityBBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll5000
Recommended RibbonIP-R4302; R4302
Ribbon SeriesR4300; R7950
Suggested Ribbon SeriesR4300; R4500; R6200
Total Quantity5000
Adhesive TypeAcrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesSelf-laminating
Resistance PropertiesChemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Dimensions (Metric)12.70 mm W x 19.05 mm H
Height (in/ft/yd)0.75 in
Horizontal Repeat0.6 in
Label/Tape Size (in/ft/yd)0.75 in H x 0.5 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)3.00 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)2.00 mm
Printable Area Height (mm/cm/m)9.53 mm
Sign Size-General0.75 in x 0.5 in
Thickness (in/ft/yd)0.004 in
Vertical Repeat0.85 in
Web Width (in/ft/yd)2.5 in
Width (in/ft/yd)0.5 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
