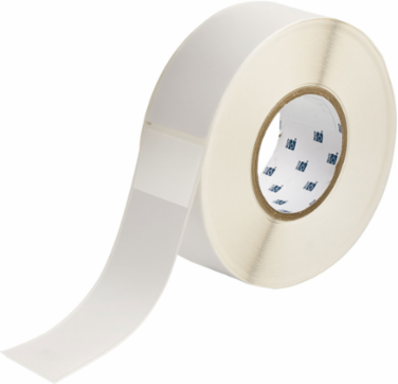

Brady THT-83-427-0.5 Self-Laminating Vinyl Wire and Cable Labels7" H x 2" W, Roll of 500 Labels

MPN: THT-83-427-0.5
UPC: 662820305484
PPN: BRD-THT-83-427-0.5
UNSPSC: 55121612

$564.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.

Features

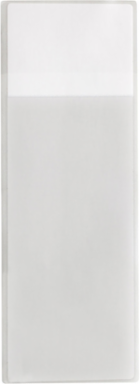

Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
Durable, permanent acrylic adhesive has outstanding water and oil resistance
UL approved
Service temperature of -40°F to 158°F (-40°C to 70°C)

Documentation & Downloads

Specifications

Key Specifications

Applications	Electrical Labeling; Wire and Cable Labeling
Color	Clear/White
Corner Type	Rounded Corners
Enables Industry Compliance	ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
For Use with Printer	BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
National Stock Number (NSN)	7690015892244
Print Technology	Thermal Transfer
Printer Compatibility	BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
Quantity per Roll	500
Recommended Ribbon	IP-R4302; R4302
Shape	Rectangle
Total Qty per Pack	500 Label(s) / Roll
Adhesive (Y/N)	Yes
Brady Material Number	B-427
Label Properties	Self Laminating Labels & Wraps
Material Properties	Flame-retardant; Self-laminating
Resistance Properties	Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Dimensions (Metric)	50.80 mm W x 177.80 mm H
Height (in/ft/yd)	7 in
Label/Tape Size (in/ft/yd)	7 in H x 2 in W
Maximum Service Temperature °F	158 °F
Maximum Wire Diameter (mm/cm/m)	44.45 mm
Minimum Service Temperature °F	-94 °F
Minimum Wire Diameter (mm/cm/m)	22.35 mm
Printable Area Dimensions (Metric)	38.10 mm H x 50.80 mm W
Printable Area Height (mm/cm/m)	38.10 mm
Printable Area Width (mm/cm/m)	50.80 mm
Size - Width (mm)	50.80 mm
Thickness (mm/cm/m)	0.102 mm
Vertical Repeat (mm)	182.55 mm
Web Width (mm/cm/m)	55.88 mm
Width (mm/cm/m)	50.8 mm

Brand Name	Brady®
Compatible Surface Types	General
Diagram	Icon 4 (D with centre dot)
Finish	Matte
Label/Media Format	Roll
Primary Noun, Basic Function	Label
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP12; i7100; i5100
Quantity per Row	1
Ribbon Series	R4300; R7950
Suggested Ribbon Series	R4300; R4500
Total Quantity	500
Adhesive Type	Permanent Acrylic
Indoor or Outdoor Use	Outdoor Use
Material	Self-laminating Vinyl
Overlaminate Included	Overlaminate Included
SAP B-Number	B-427
Dimensions	7 in H x 2 in W
Dimensions 2	7 in H x 2 in W
Height (mm/cm/m)	177.80 mm
Maximum Service Temperature °C	70 °C
Maximum Wire Diameter (in/ft/yd)	1.75 in
Minimum Service Temperature °C	-70 °C
Minimum Wire Diameter (in/ft/yd)	0.88 in
Printable Area Dimensions	1.5 in H x 2 in W
Printable Area Height (in/ft/yd)	1.5 in
Printable Area Width (in/ft/yd)	2 in
Sign Size-General	7 in x 2 in
Thickness (in/ft/yd)	0.004 in
Vertical Repeat	7.187 in
Web Width (in/ft/yd)	2.2 in
Width (in/ft/yd)	2 in
Wire Diameter Range	0.88 in to 1.75 in

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
Contains Heavy Metal(s)	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
