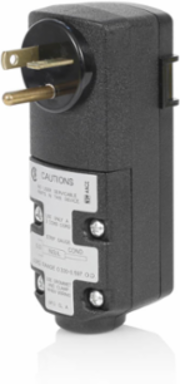

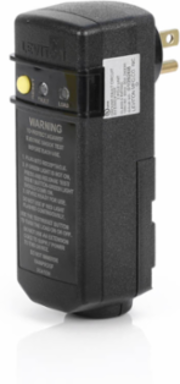

Leviton GSRA2 20 Amp GFCI Automatic Reset Plug, 120 VAC, Rainproof Design
Leviton GSRA2 20 Amp GFCI Automatic Reset Plug, 120 VAC, Rainproof Design
- MPN: GSRA2
- UPC: 078477682784
- PPN: LEV-GSRA2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.45/ EA
Description
20 Amp, 120 VAC, Self-Test Automatic Reset Right Angle GFCI Plug (5-20P), Rainproof Design, Black
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- Automatic reset – automatically restore power to connected equipment when plugged in or after power interruption, ideal for hard to access locations
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 943
- Class A (GFCI)
CSA C22.2File LR-57811
NOM057
UL ListedE-48380
Material Specifications
- Blades/Contacts
- Brass
- Color
- Black
Body MaterialPolycarbonate
Mechanical Specifications
- Cord Range
- .330 - .597
- Terminal Accom.
- 18-12 AWG
Product IDRatings permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-35°C to 66°C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- GFCI Ground Fault
- Trip Level
- 5mA plus or minus 1mA
- Wire
- 3
Current Interrupting2 kA
Pole2
Voltage120 VAC
AC Horsepower Ratings
- At Rated Voltage
- 3/4 Horsepower
