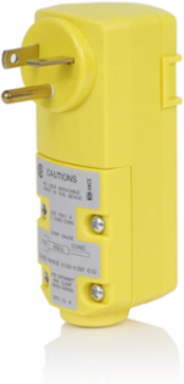

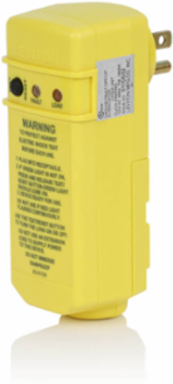

Leviton GSRM2 20 Amp Rainproof Right Angle GFCI Plug, 3 FT Cord, Manual Reset, 120 VAC
Leviton GSRM2 20 Amp Rainproof Right Angle GFCI Plug, 3 FT Cord, Manual Reset, 120 VAC
- MPN: GSRM2
- UPC: 078477682883
- PPN: LEV-GSRM2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.45/ EA
Description
20 Amp, 120 VAC, Self-Test Manual Reset Right Angle GFCI Plug (5-20P), Rainproof Design, Yellow
Features
- Satisfies latest UL 943 self-test requirement
- Improve safety – protect critical personnel from electrical shocks
- Withstand outdoor conditions – rainproof and outdoor rated devices are OSHA compliant and feature weather-resistant SJTW cables
- Ideal for – vending machines, construction sites, RV parks, marinas, and spas/hot tubs
- MANUAL RESET (YELLOW) models require manual actuation to restore power to connected equipment providing an extra level of safety
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA C22.2
- File LR-57811
- NOM
- 057
- UL 943
- Class A (GFCI)
CSAC22.2 No.42 & No. 144
NEMAWD-6
UL 498File E-48380
Warranty2-Year Limited
Material Specifications
- Blades/Contacts
- Brass
- Color
- Yellow
Body MaterialPolycarbonate
Mechanical Specifications
- Cord Length
- 3 FT.
- Product ID
- Ratings marked on device label
Cord TypeAccepts SJ & ST Cord Types
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-35C to +66C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- GFCI Ground Fault
- Short Circuit Current Rating
- 2kA
- Trip Level
- 5mA plus or minus 1mA
- Wire
- 3
Current Interrupting2 kA
Pole2
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Voltage120 VAC
AC Horsepower Ratings
- At Rated Voltage
- 3/4 Horsepower
