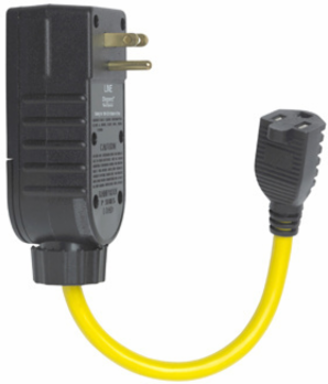

Pass & Seymour 1597CS1A Portable 15A Right Angle Self-Test GFCI Plug with 1-Foot Cord Set, Automatic Reset
- MPN: 1597CS1A
- UPC: 785007381573
- PPN: P-S-1597CS1A
CAD
$83.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Plug this Right Angle Portable GFCI (Automatic Reset) into a standard outlet to provide GFCI protection when powering portable equipment such as drills, saws, pressure washers, power painters, etc. outdoors, on construction sites, or anywhere a GFCI-protected receptacle might not be accessible. This model includes 1-Foot Cord Set for easier connectivity.Ground-Fault Circuit Interrupters (GFCI) help prevent electrical shock caused by ground faults. GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sink or water source.
Features
- Protects against electrical shock caused by ground-fault occurrences.
- Conducts an industry-leading automatic self-test every 3 seconds. If the portable GFCI device ever fails, the red indicator light flashes to signal it should be replaced.
- Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.
- Open neutral relay automatically cuts power to device line conductor if the neutral wire preceding the portable GFCI becomes damaged.
- Automatically energizes portable GFCI for use upon plug-in and after loss of primary power.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.75 in
- Color
- Black
- Finish
- Matte
- Product Line
- Pass & Seymour
- Amperage
- 15.0 A
- Outlet Type
- GFCI
- Number of Wires
- 3.0
- Outlet Type
- Self-Test
- Indoor/Outdoor
- Outdoor
- Wall Plate Included
- No
- Features
- Automatic Reset
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-15P
- Application Sector
- Residential
- Application Sector
- Multi-Dwelling Unit
- Operating Temperature
- -35°-66°C
Height4.0 in
Weight1.0 lb
Width2.0 in
Country of OriginChina
Voltage125.0 V
Seismic TestedNo
FeaturesRight Angle
FeaturesPortable GFCI
Is Tamper-ResistantNo
Is Weather ResistantNo
Connection LocationBottom
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-35.0 °C
Operating Temperature Max66.0 °C
