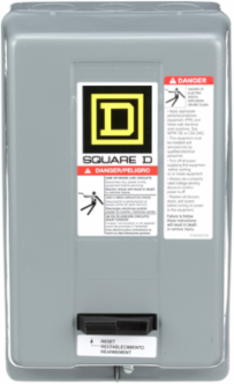

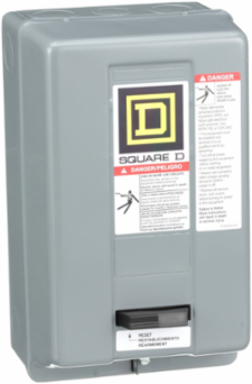

Square D 9991SCG8 NEMA Motor Starter Type S Non-Reversing Enclosure for NEMA Size 00/0/1, 10 Inch Height, 6 Inch Width
- MPN: 9991SCG8
- UPC: 785901759072
- PPN: SCH-9991SCG8
CAD
$114.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

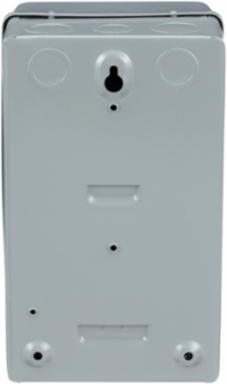

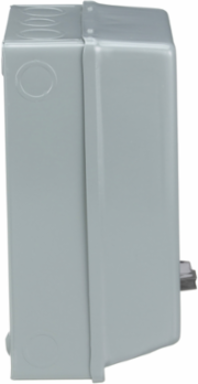

Type S non-reversing magnetic NEMA motor starters are for motor control applications. This enclosure is for nonreversing 8536S NEMA motor starters Size 00, 0 or 1. This NEMA 1 sheet steel enclosure is painted grey. Knockouts in the cover of this enclosure provide for field addition of Class 9999 rectangular cover mounted control units. Three number 10 screws are used to mount this enclosure. Enclosure is 10.00 inches tall, 5.98 inches wide and 5.56 inches deep. This enclosure is CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth141 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Rohs Eur In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- enclosure
- Sustainable Packaging
- No
- Width Nominal
- 152 mm
- Package Weight(Lbs)
- 1.63 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Height Nominal254 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Eu Rohs Directive
- Under investigation
- Packaging Without Single Use Plastic
- No
Nema Size00, 0, 1
Recycled Metal Content At Cr Level0 %
Packaging Made With Recycled CardboardYes
General Attributes
- Product Or Component Type
- enclosure
ETIM
- ETIM 8
- EC000200
ETIM 9EC000200
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
