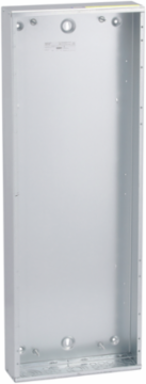

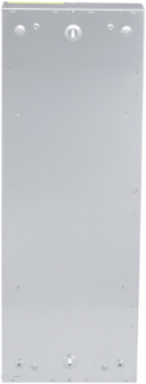

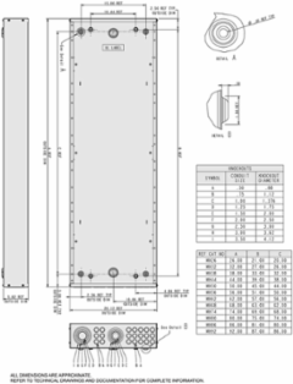

Square D MH56 NEMA 1 Enclosure Box, 20 Inch W x 56 Inch H x 5.75 Inch D, Steel
- MPN: MH56
- UPC: 785901487494
- PPN: SCH-MH56
CAD
$207.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure box is rated as a Type 1 with one blank end wall and one end wall with knockouts for common conduit sizes. The enclosure dimensions are 20 inch width x 56 inch height x 5.75 inch depth. NQ and NF enclosures are UL listed for use in the USA and Canada. The end walls of NF and NQ enclosures are removable to simplify field modification to support the widest range of electrical conduit connections. NC trim fronts for interiors rated up to 250A may be screwed directly to the deadfront of the NF or NQ panelboard. NC trim fronts for interiors rated 400A or greater are vented and designed to be screwed directly to the Type 1, 2 enclosure of the NF or NQ panelboard. MHxxWP enclosures provide Type 3R/5/12 protection to NF and NQ Panelboards, and are supplied with removable blank end walls. MHxxBE and MHxxD9 Type 1 enclosures are supplied with removable blank end walls at both ends. MHxx enclosures have one blank end wall and one end wall with knockouts for common conduit sizes.
Features
- Engineered as a heavy-duty NEMA Type 1 industrial-grade enclosure, this box is designed to house Schneider Electric Square D I-Line circuit breaker panelboards. It serves as the primary structural shell, providing the necessary interior layout and mounting provisions to securely accept high-capacity distribution branch breakers and main lug configurations.
- Measuring exactly 56 inches in height, 26 inches in width, and an ultra-slim 5.75 inches in total depth, this enclosure delivers extensive interior volume for optimal wire management while maintaining a low-profile installation. The shallow depth ensures that the unit can be easily integrated into standard structural walls and tighter utility spaces where room is at a premium.
- Designed with flat, solid exterior walls and a robust back panel, this box is engineered for surface-mounted installations directly onto concrete blocks or heavy utility framing. The uniform layout allows contractors to easily position the unit, line up incoming conduit runs, and punch custom entry holes along any side of the perimeter walls.
- Manufactured from steel, this enclosure features integrated, pre-threaded grounding studs welded directly to the interior frame structure. This configuration establishes a low-resistance path to ground across the entire steel assembly, ensuring immediate circuit-breaker trip activation during an accidental phase-to-ground fault and safeguarding facility workers from shock hazards.
- Fully manufactured to rigorous North American safety standards, this product is cULus listed and CSA certified to meet the demanding requirements of commercial and industrial building codes. The factory-applied protective finish prevents rusting, ensuring that facility engineering audits, municipal electrical safety sign-offs, and insurance validations proceed smoothly.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5.75 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 5.4917416326, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2440825066, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-11-18
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Or Component Type
- enclosure
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 177 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 97
- Width Nominal
- 20 in
- [Ue] Rated Operational Voltage
- 600 V AC48 V DC
- Package Weight(Lbs)
- 19.051 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]44 kg CO2 eq., 43.81320013
Carbon Footprint Of The Manufacturing Phase [A1 To A3]128 kg CO2 eq., 127.7749198373
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Enclosure Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2510012EN
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal56 in
Certificate AgencycULus
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 177.3239441065
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2510012EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2510012EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
