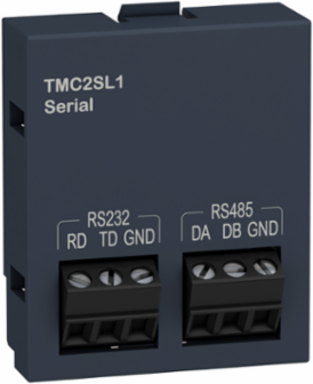

Schneider Electric TMC2SL1 Modicon M221 Communication Cartridge, 35mm x 15mm x 41mm, 1.2 to 115.2kbps
- MPN: TMC2SL1
- PPN: SCH-TMC2SL1
- UNSPSC: 32151705
CAD
$134.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Features
- SD card and USB port
- 2 analog inputs and a broad choice of I/Os
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 15 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
|---|
Complementary Attributes
| Integrated Connection Type | non isolated serial link - screw terminal block RS232, non isolated serial link - screw terminal block RS485 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M221 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 35 mm |
| Customs Code | 8536904000 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1403017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Insulation | non-insulated between lines and internal logic |
| Product Or Component Type | serial line cartridge |
| Returnability | Yes |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS4851.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232 |
| Height Nominal | 41 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | Modicon M221C |
| Pep Code | ENVPEP1403017EN |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | serial line cartridge |
|---|
| Range Of Product | Modicon M221 |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|---|
| ETIM 10 | EC001423 |
| ETIM 9 | EC001423 |
|---|
