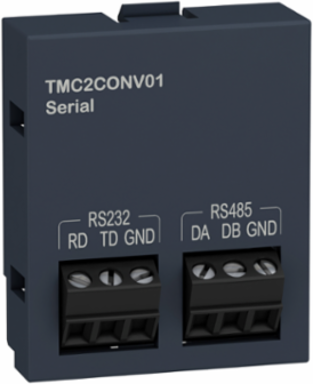

Schneider Electric TMC2CONV01 Modicon M221 Serial Line Cartridge, 35mm Width, 41mm Height, 0.015kg Weight
- MPN: TMC2CONV01
- PPN: SCH-TMC2CONV01
CAD
$148.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
cartridge M221 - conveying 1 serial line - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides a serial link port for conveying application. The non isolated serial link type is Modbus master - slave. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between lines and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, Taiwan, United States
Depth15 mm
Communications & Management Attributes
- Communication Port Protocol
- non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Complementary Attributes
- Integrated Connection Type
- non isolated serial link - screw terminal block RS232, non isolated serial link - screw terminal block RS485
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0079898148
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.970154321
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1403017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Insulation
- non-insulated between lines and internal logic
- Product Or Component Type
- serial line cartridge
- Range Of Product
- Modicon M221
- Software Version
- EIME v5.6.0.1
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Pep Code
- ENVPEP1403017EN
- Pep Verification Date
- 2018-08-01
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
- Energy Consumption On Product Lifetime, In Kwh
- 9.636
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 35 mm
- Package Weight(Lbs)
- 39.000 g
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 11.99
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Carbon Footprint Of The Distribution Phase [A4]0.0025804321, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000589938, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 4.7211388889
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationconveying applications
ReturnabilityNo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal41 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]11.99
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403017EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-08-01
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint5.7019224506
Environmental DisclosureENVPEP1403017EN
Packaging Made With Recycled CardboardNo
Product CompatibilityModicon M221C
Pep CodeENVPEP1403017EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- serial line cartridge
Range Of ProductModicon M221
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
