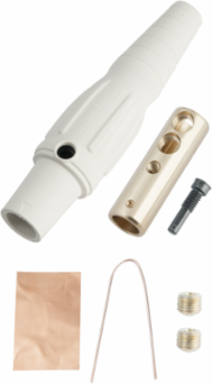

Pass & Seymour PS20FBW Series 16 In-Line Connectors
Pass & Seymour PS20FBW Series 16 In-Line Connectors
- MPN: PS20FBW
- UPC: 785007308112
- PPN: P-S-PS20FBW
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.61/ EA
Description
Series 16 In-Line Connectors
Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance
- Exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce ''splaying.''
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Flanged
- No
- Type
- Connector
- Voltage
- 600.0 V
- Warranty Type
- 1-Year
- Terminal Accommodation
- 2/0
- Number of Poles
- Single Pole
- Application Sector
- Industrial
- Special Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity. Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity. Heavy-duty hex set screws allow greater termination torque. Copper wire provides quality strain relief. Copper shim bundles wire strands to reduce "splaying."
ColorWhite
Environmental ConditionsOperating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
StandardUL
StandardcCSAus
Amperage400.0 A
Indoor/OutdoorIndoor
FeaturesChemical Resistant
Application SectorCommercial
NEMA RatingNEMA 3R and 4 for indoor applications
