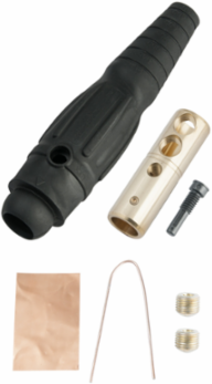

Pass & Seymour PLS1820FBK Series 18 In-Line Connectors, 6.8 Inch Length, Black, Accepts #6-4/0 Size Wire
Pass & Seymour PLS1820FBK Series 18 In-Line Connectors, 6.8 Inch Length, Black, Accepts #6-4/0 Size Wire
- MPN: PLS1820FBK
- UPC: 785007255003
- PPN: P-S-PLS1820FBK
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$61.56/ EA
Description
Series 18 In Line Connectors - fivemale
Features
- Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire.
- Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
Specifications
Specifications
- Length
- 6.8 in
- Country of Origin
- Mexico
- Environmental Conditions
- Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
- Standard
- cUL
- Standard
- cCSAus
- Amperage
- 400.0 A
- Application Sector
- Commercial
- NEMA Rating
- NEMA 3R and 4 for indoor applications
ColorBlack
Product LinePass & Seymour
StandardUL
Wire Size2/0
Voltage600.0 V
Number of PolesSingle Pole
Application SectorIndustrial
Special FeaturesInterchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire. Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.
