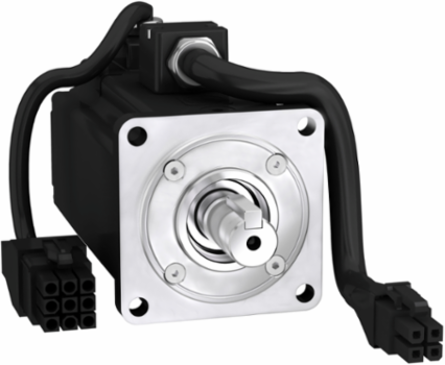

Schneider Electric BCH2LD0431CA5C Lexium 28 Servo Motor 60mm 400W 1.45kg

  • MPN: BCH2LD0431CA5C
  • PPN: SCH-BCH2LD0431CA5C
  • UNSPSC: 26101205

CAD

$787.17

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Crafted by Schneider Electric, the Lexium 28 Servo Motor represents a notable advancement in motion control technology, designed specifically for applications that demand precision and reliability. This 60mm, 400W servo motor, weighing 1.45 kg, integrates seamlessly into various automation and control systems, ensuring enhanced performance and responsiveness. Its robust design makes it an excellent choice for developers and engineers looking to achieve efficient automation solutions, while its compatibility with other components in the motion control category allows for versatile integration in sophisticated industrial environments.

Features

  • Designed to cover a nominal power of 400W
  • Automatic tuning and motor identification
  • Optimized for easy integration and commissioning in machine
  • Increase profitability
  • PLCopen motion library

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina
Weight2080 g

Physical Attributes

Key Width5 mm
Shaft Length30 mm
Motor Flange Size60 mm

Complementary Attributes

Maximum Current Irms7.76 A LXM28... 0.4 kW, 220 V, 7.76 A LXM28... 0.4 kW, 110 V, 7.8 A
Line Rated Current2.5 A
Maximum Axial Force Fa70 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr200 N 3000 rpm
Minimum Operational Altitude0.0 m
Us Rated Supply Voltage220 V, 110 V
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed5000 rpm
Maximum Permanent Current2.5 A
Minimum Ambient Air Temperature For Operation0.0 °C
Maximum In Rated Current2.5 A

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM28... 2.6 A, 220 V, single phase, LXM28... 2.6 A, 220 V, three phase LXM28... 5.7 A, 110 V, single phase, 3000 rpm
Peak Stall Torque3.81 N.m LXM28... 2.6 A, 220 V, single phase, 3.81 N.m LXM28... 2.6 A, 220 V, three phase3.81 N.m LXM28... 5.7 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.22339713
Carbon Footprint Of The Manufacturing Phase A1 To A312 kg CO2 eq., 11.9212914798
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter50 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current2.19 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake0.26 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia0.27 kg.cm²
Shaft Endkeyed
Software VersionEIME v5.6.0.1
Stator Inductance12.0 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.58 N.m/A 20 °C
Type Of Coolingnatural convection
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Brake Pull In Power11.2 W
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque1.27 N.m LXM28 2.6 A, 220 V, single phase, 1.27 N.m LXM28 2.6 A, 220 V, three phase1.27 N.m LXM28 5.7 A, 110 V, single phase
Nominal Torque1.27 N.m half speed, 1.27 N.m full speed, 1.27 N.m LXM28... 2.6 A, 220 V, single phase, 1.27 N.m LXM28... 2.6 A, 220 V, three phase1.27 N.m LXM28... 5.7 A, 110 V, single phase
Phasesingle phase, three phase
Carbon Footprint Of The Distribution Phase A40.2683713004, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0132569686, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B62 958 kg CO2 eq., 2958.0599620357
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes70 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power400 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewithout
Motor Figures230.0 V
Mounting Holes Diameter5.5 mm
Network Number Of Phases1
Number Of Motor Stacks2
Peak Nominal Torque3.81 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter14 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant2.31 ms 20 °C
Stator Resistance5.2 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint2 970 kg CO2 eq.
Database Version2016-11
Length Total129 mm
Customs Code8501514040
Distance Shaft Shoulder Flange5.5 mm
Functional Unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional Unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh6037.513

Environment Attributes Main

Ambient Air Temperature For Operation-20-40 °C, -20-40 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint2970.4862789147
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP54 IM B5, IM V1IP50 IM V3
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Product CompatibilityLXM28... servo drive 0.4 kW, 220 V, single phase, LXM28... servo drive 0.4 kW, 220 V, three phase, LXM28... servo drive 0.4 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasesingle phase, three phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power400 W LXM28... 2.6 A, 220 V, single phase, 400 W LXM28... 2.6 A, 220 V, three phase400 W LXM28... 5.7 A, 110 V, single phase
Output Current 3s Peak7.8 A
