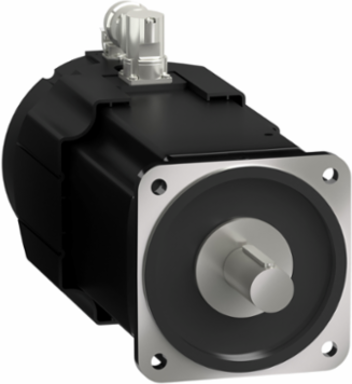

Schneider Electric BMH1904P31A2B Servo Motor Lexium 32 100Nm 3000rpm IP65 57.4kg

  • MPN: BMH1904P31A2B
  • PPN: SCH-BMH1904P31A2B
  • UNSPSC: 26101205
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This servo motor from Schneider Electric is engineered for high-performance motion control in various automation applications. With a robust torque rating of 100Nm and a maximum speed of 3000rpm, it offers exceptional precision and responsiveness, making it ideal for demanding tasks. Designed with an IP65 rating, this servo motor ensures reliable operation in challenging environments by providing excellent protection against dust and water. Its integration into modern automation systems is seamless, allowing for enhanced operational efficiency and control in your projects.

Features

  • Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
  • Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
  • Rapid installation and maintenance with removable, colour-coded connectors
  • Integrated safety functions

Documentation & Downloads

Specifications

Key Specifications

Country of OriginGermany
Weight57400 g

Physical Attributes

Key Width10 mm
Shaft Length80 mm
Motor Flange Size190 mm

Complementary Attributes

Maximum Current Irms100 A, 100 A LXM32MC10N4
Line Rated Current32.0 A
Maximum Axial Force Fa0.2 x Fr
Maximum Operational Altitude3000.0 m
Maximum Radial Force Fr3800 N 1000 rpm3700 N 2000 rpm3600 N 3000 rpm
Us Rated Supply Voltage480 V
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current100 A
Minimum Operational Altitude0.0 m
Maximum In Rated Current32.0 A

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 2-4.418E-05 N.m/rpm², -4.418E-05 N.m/rpm²
Coefficient 1 6-2.705E-18 N.m/rpm6, -2.705E-18 N.m/rpm6
Nominal Speed2000 rpm, 2000 rpm LXM32MC10N4 40 A, 400 V, three phase, 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
Peak Stall Torque230 N.m LXM32MC10N4 40 A, 400 V, three phase, 230 N.m LXM32MC10N4 40 A, 480 V, three phase
Carbon Footprint Of The End Of Life Phase C1 To C45 kg CO2 eq., 5.4088570025
Carbon Footprint Of The Manufacturing Phase A1 To A3251 kg CO2 eq., 251.2907125307
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Coefficient 1 38.688E-08 N.m/rpm3
Coefficient 2 00 N.m
Continuous Stall Current40 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Motor Figures480.0 V
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque230.0 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endsmooth shaft
Software VersionEIME v5.8.1
Stator Electrical Time Constant29.6 ms 20 °C
Stator Resistance0.16 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint17 449 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 4-6.984E-11 N.m/rpm4, -6.984E-11 N.m/rpm4
Continuous Stall Torque100 N.m LXM32MC10N4 40 A, 400 V, three phase, 100 N.m LXM32MC10N4 40 A, 480 V, three phase
Nominal Torque76.4 N.m full speed97.14 N.m half speed, 76.4 N.m LXM32MC10N4 40 A, 400 V, three phase, 76.4 N.m LXM32MC10N4 40 A, 480 V, three phase
Carbon Footprint Of The Distribution Phase A47.4055872236, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.5092099263, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B617 185 kg CO2 eq., 17184.8288739172
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter180 mm
Coefficient 1 10.005174 N.m/rpm
Coefficient 1 52.309E-14 N.m/rpm5
Coefficient 2 10.0016 N.m/rpm
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameBMH
Feedback Typemultiturn SinCos Hiperface
Inertia0.0 kg.cm² of brake276.7 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia276.7 kg.cm²
Shaft Diameter38 mm
Sizing ReferenceBMH1904P
Speed Feedback Resolution131072 points/turn x 4096 turns
Stator Inductance2.37 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot130 °C
Torque Constant2.5 N.m/A 120 °C
Type Of Coolingfan
Database Version2016-11
Length Total449.5 mm
Customs Code8501512040
Functional Unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh35075.04

Environment Attributes Main

Take BackNo
China Rohs RegulationX
Carbon Footprint17449.4432406003
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP65 standardIP20 with fan module
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasethree phase
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power16000 W LXM32MC10N4 40 A, 400 V, three phase, 16000 W LXM32MC10N4 40 A, 480 V, three phase
Output Current 3s Peak100.0 A
