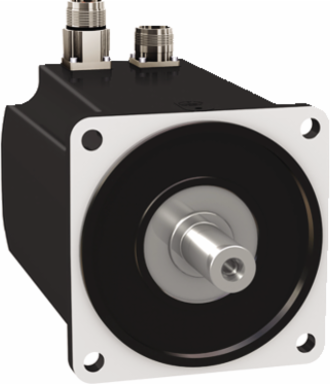

Lexium 32 Servo Motor 10.3Nm 4000rpm IP65/IP67 with Brake
Schneider Electric

Schneider Electric BMH1401P26F1A Lexium 32 Servo Motor 10.3Nm 4000rpm IP65/IP67 with Brake

  • MPN: BMH1401P26F1A
  • PPN: SCH-BMH1401P26F1A

CAD

$3009.74

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Engineered by Schneider Electric, this servo motor exemplifies cutting-edge technology in motion control applications. The Lexium 32 model provides a remarkable torque of 10.3Nm and operates at an impressive speed of 4000rpm, ensuring optimal performance for various automation tasks. With an IP65/IP67 rating, it boasts superior resistance to dust and moisture, making it suitable for demanding environments. Coupled with a reliable brake mechanism, this servo motor not only enhances efficiency but also promotes safety and precision in your automation projects.

Documentation & Downloads

Specifications

Additional

Torque
10.3 N.m
Holding Brake
with holding brake 18 N.m
Maximum Radial Force Fr
1930 N at 1000 rpm, 1530 N at 2000 rpm, 1340 N at 3000 rpm
Phase
Three phase
Length
187 mm (7.36 in)
Shaft Length
50 mm (1.97 in)
Number of Motor Poles
10
Material
Electrical steel (implied by stator and rotor components)
Stator Inductance
6.7 mH at 20 °C
Compliance
RoHS, PVC Free
Maximum Mechanical Speed4000 rpm
Continuous Stall Current8.58 A
Supply Voltage480 V
Net Weight10.3 kg (22.71 lb)
Shaft Diameter24 mm (0.94 in)
Motor Flange Size140 mm (5.51 in)
Centring Collar Diameter130 mm
Stator Resistance0.69 Ohm at 20 °C
IP Degree of ProtectionIP65 standard, IP67 with kit
