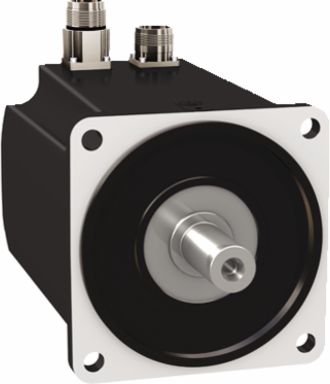

Schneider Electric BMH1401P27F1A Lexium 32 Servo Motor, 10.3 Nm Torque, 4000 rpm, IP65/IP67
- MPN: BMH1401P27F1A
- PPN: SCH-BMH1401P27F1A
CAD
$3490.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor by Schneider Electric is engineered for high performance in a wide range of automation and control applications. With a robust torque output of 10.3 Nm and a maximum speed of 4000 rpm, this motor delivers responsive and precise motion control essential for demanding tasks. Designed to meet rigorous industry standards, it boasts an IP65/IP67 rating, ensuring resilience against dust and water ingress, making it suitable for various operating environments. This device is an ideal choice for integrating sophisticated motion control solutions into your systems, enhancing efficiency and reliability.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 30.8 N.m
- Holding Torque
- 18 N.m holding brake
- Maximum Radial Force
- 1930 N (1000 rpm), 1530 N (2000 rpm), 1340 N (3000 rpm)
- Nominal Output Power
- 1450 W (230 V single phase), 2400 W (400-480 V three phase)
- Nominal Speed
- 2000 rpm (230 V single phase), 3000 rpm (400-480 V three phase)
- Continuous Stall Current
- 8.58 A
- Back Emf Constant
- 77.4 V/krpm 120 0C
- Phase
- Three phase
- Shaft Diameter
- 24 mm (0.94 in)
- Motor Flange Size
- 140 mm (5.51 in)
- Centring Collar Depth
- 3.5 mm (0.14 in)
- Circle Diameter of Mounting Holes
- 165 mm (6.50 in)
- Net Weight
- 10.3 kg (22.71 lb)
- Mounting Support
- International standard flange
- Feedback Type
- Multiturn SinCos Hiperface
- Type of Cooling
- Natural convection
- IP Degree of Protection
- IP65 standard, IP67 with IP67 kit
- Mercury Free
- Yes
- EU RoHS Directive
- Pro-active compliance, product out of EU RoHS legal scope
- Environmental Disclosure
- ENVPEP111002EN
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Range Compatibility
- Lexium 32
- Warranty
- 18 months
Continuous Stall Torque10.3 N.m
Maximum Current Irms29.8 A
Maximum Axial Force0.2 x Fr
Nominal Torque6.9 N.m (230 V single phase), 7.7 N.m (400-480 V three phase)
Maximum Speed4000 rpm
Torque Constant1.2 N.m/A 120 0C
Supply Voltage480 V
Length187 mm (7.36 in)
Shaft Length50 mm (1.97 in)
Centring Collar Diameter130 mm (5.12 in)
Mounting Holes Diameter11 mm (0.43 in)
Number of Mounting Holes4
Number of Motor Poles10
MaterialNot explicitly specified
Holding BrakeWith
Electrical ConnectionStraight connectors
RoHS Exemption InformationYes
PVC FreeYes
China RoHS RegulationX
Sustainable Offer StatusGreen Premium product
Device Short NameBMH
Product CompatibilityLXM32.D30M2 230 V single phase, LXM32.D30N4 400-480 V three phase
