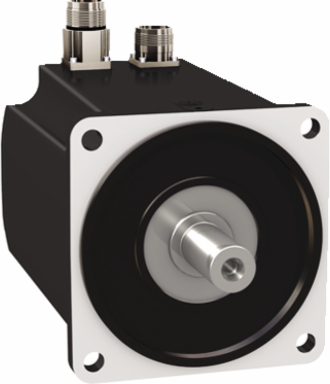

Schneider Electric BMH1401P06A1A Lexium 32 Servo Motor, 10.3 Nm Torque, 4000 rpm, IP54
- MPN: BMH1401P06A1A
- PPN: SCH-BMH1401P06A1A
CAD
$2295.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for precision and effectiveness, the Lexium 32 Servo Motor from Schneider Electric offers impressive torque of 10.3 Nm and a maximum speed of 4000 rpm, making it an exceptional choice for a variety of automation and control applications. The motor's IP54 rating ensures robust protection against dust and moisture, allowing for reliable performance even in challenging environments. With its combination of power and reliability, this servo motor is designed to meet the demands of modern motion control systems, providing the efficiency and responsiveness needed in dynamic industrial settings.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 1450 W to 2400 W
- Peak Stall Torque
- 30.8 N.m
- Maximum Mechanical Speed
- 4000 rpm
- Continuous Stall Current
- 8.58 A
- Maximum Permanent Current
- 29.8 A
- Shaft Length
- 50 mm
- Motor Flange Size
- 140 mm
- Mounting Holes Diameter
- 11 mm
- Length
- 152 mm
- Back Emf Constant
- 77.4 V/krpm 120 °C
- Rotor Inertia
- 16.46 kg.cm²
- Stator Inductance
- 6.7 mH 20 °C
- IP Rating
- IP54
- Rated Supply Voltage
- 480 V
- Feedback Type
- Single turn SinCos Hiperface
- Shaft End
- Smooth shaft
- Type Of Cooling
- Natural convection
- Centring Collar Depth
- 3.5 mm
- Country of Origin
- Germany
Continuous Stall Torque10.3 N.m
Nominal Torque6.9 N.m to 7.7 N.m
Nominal Speed2000 to 3000 rpm
Maximum Current Irms29.8 A
Shaft Diameter24 mm
Mounting SupportInternational standard flange
Number Of Mounting Holes4
Circle Diameter Of Mounting Holes165 mm
Torque Constant1.2 N.m/A 120 °C
Number Of Motor Poles10
Stator Resistance0.69 Ohm 20 °C
Stator Electrical Time Constant9.7 ms 20 °C
PhaseThree phase
Product CompatibilityLXM32.D30M2 230 V single phase, LXM32.D30N4 400-480 V three phase
Speed Feedback Resolution32768 points/turn
Holding BrakeWithout
Centring Collar Diameter130 mm
Environmental ComplianceRoHS, Mercury Free, PVC Free, EU WEEE Compliant
