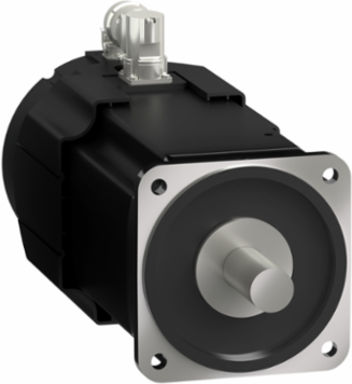

Schneider Electric BMH1904P22A2B Lexium 32 Servo Motor 100Nm 3000rpm IP65 128 Multiturn Encoder
- MPN: BMH1904P22A2B
- PPN: SCH-BMH1904P22A2B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's Lexium 32 Servo Motor is engineered for high-performance motion control applications, boasting an impressive torque of 100Nm and a maximum speed of 3000rpm. Its robust design and IP65 rating ensure reliable operation in demanding environments, protecting against dust and water ingress. Complemented by a sophisticated 128 multiturn encoder, this servo motor offers precise positioning and feedback, making it an essential component for automation solutions that require accuracy and efficiency in motion control tasks.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 9800 W
- Peak Stall Torque
- 230 N.m
- Torque Constant
- 2.5 N.m/A 120 °C
- Continuous Stall Current
- 40 A
- Rated Supply Voltage
- 480 V
- Maximum Mechanical Speed
- 3000 rpm
- Torque
- 100 N.m
- Maximum Axial Force
- 0.2 x Radial Force
- Shaft Diameter
- 38 mm (1.50 in)
- Key Width
- 10 mm (0.39 in)
- Number of Motor Stacks
- 4
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 215 mm (8.46 in)
- Centring Collar Depth
- 4 mm (0.16 in)
- Electrical Connection
- Rotatable right-angled connectors
- Rotor Inertia
- 276.7 kg.cm²
- Stator Inductance
- 4.74 mH 20 °C
- Feedback Type
- Multiturn SinCos Hiperface
- Pvc Free
- Yes
- RoHS Compliant
- Yes
- Country of Origin
- Germany
Continuous Stall Torque100 N.m
Nominal Torque46.8 N.m
Back Emf Constant168 V/krpm 120 °C
Maximum Current Irms100 A
Phasethree phase
Nominal Speed2000 rpm
Maximum Radial Force3800 N @ 1000 rpm, 3700 N @ 2000 rpm, 3600 N @ 3000 rpm
Length383 mm (15.08 in)
Shaft Length80 mm (3.15 in)
Motor Flange Size190 mm (7.48 in)
Number of Motor Poles10
Mounting Holes Diameter14 mm (0.55 in)
Centring Collar Diameter180 mm (7.09 in)
Shaft EndKeyed
Cooling TypeNatural convection
Stator Resistance0.16 Ohm 20 °C
Stator Electrical Time Constant29.6 ms 20 °C
Encoder128 multiturn
Mercury FreeYes
IP RatingIP65 standard, IP67 with kit
