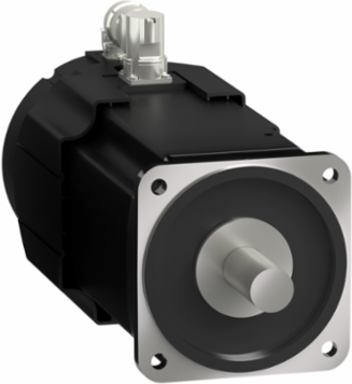

Schneider Electric BMH1904P21A2B Lexium 32 Servo Motor, 100Nm, 3000rpm, IP65, 55.8kg
- MPN: BMH1904P21A2B
- PPN: SCH-BMH1904P21A2B
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precise motion control, the Lexium 32 Servo Motor from Schneider Electric exemplifies advanced automation technologies. With a substantial torque of 100Nm and capable of reaching speeds up to 3000rpm, this servo motor is designed to meet the demanding requirements of various industrial applications. Its IP65 rating ensures robust protection against dust and water, making it suitable for use in challenging environments. Weighing 55.8 kg, this motor combines power and reliability, thus providing exceptional performance for sophisticated motion control tasks in automation systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 10 mm
- Shaft Length
- 80 mm
Motor Flange Size190 mm
Complementary Attributes
- Maximum Current Irms
- 100 A, 100 A LXM32MC10N4
- Line Rated Current
- 32.0 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Maximum Radial Force Fr
- 3800 N 1000 rpm3700 N 2000 rpm3600 N 3000 rpm
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current100 A
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -0.031964 N.m/rpm, -0.031964 N.m/rpm
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 76.4 N.m full speed97.14 N.m half speed, 46.8 N.m LXM32MC10N4 40 A, 400 V, three phase, 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase
- Carbon Footprint Of The Distribution Phase [A4]
- 7.4055872236, 7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.5092099263, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 10 532 kg CO2 eq., 10532.3601539942
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 180 mm
- Coefficient 1 2
- 2.682E-06 N.m/rpm²
- Coefficient 1 4
- 0 N.m/rpm4
- Coefficient 1 6
- 0 N.m/rpm6
- Coefficient 2 1
- 0 N.m/rpm
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 80.0 °C
- Device Short Name
- BMH
- Feedback Type
- multiturn SinCos Hiperface
- Inertia
- 0.0 kg.cm² of brake276.7 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 276.7 kg.cm²
- Shaft Diameter
- 38 mm
- Sizing Reference
- BMH1904P
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Stator Inductance
- 2.37 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 130 °C
- Torque Constant
- 2.5 N.m/A 120 °C
- Type Of Cooling
- natural convection
- Pep Code
- ENVPEP111049EN
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 21497.04
- Energy Model - Installation [A5]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 480 V
- Maximum [In] Rated Current
- 32.0 A
- Package Weight(Lbs)
- 57.4 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Continuous Stall Torque100 N.m LXM32MC10N4 40 A, 400 V, three phase, 100 N.m LXM32MC10N4 40 A, 480 V, three phase
Nominal Speed2000 rpm, 2000 rpm LXM32MC10N4 40 A, 400 V, three phase, 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
Peak Stall Torque230 N.m LXM32MC10N4 40 A, 400 V, three phase, 230 N.m LXM32MC10N4 40 A, 480 V, three phase
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.4088570025
Carbon Footprint Of The Manufacturing Phase [A1 To A3]251 kg CO2 eq., 251.2907125307
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Coefficient 1 30 N.m/rpm3
Coefficient 1 50 N.m/rpm5
Coefficient 2 00 N.m
Continuous Stall Current40 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Maximum Operational Altitude3000.0 m
Motor Figures480.0 V
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque230.0 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endsmooth shaft
Software VersionEIME v5.8.1
Stator Electrical Time Constant29.6 ms 20 °C
Stator Resistance0.16 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint10 797 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total383 mm
Accuracy Error [Angular]1.4 °
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501512040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10796.9745206773
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP65 standardIP67 with IP67 kit
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 9800 W LXM32MC10N4 40 A, 400 V, three phase, 9800 W LXM32MC10N4 40 A, 480 V, three phase
Output Current 3s Peak100.0 A
