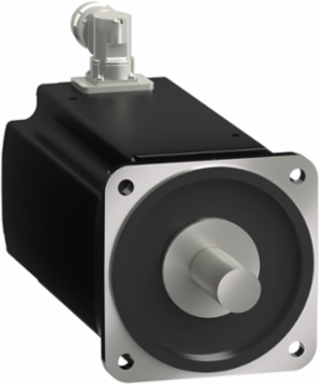

Schneider Electric BMH1904P22A2A Servo Motor Lexium 32 100Nm 3000rpm IP65/IP67 55.8kg

  • MPN: BMH1904P22A2A
  • PPN: SCH-BMH1904P22A2A
  • UNSPSC: 26101205

Quote Required

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This servo motor from Schneider Electric is engineered for high-performance automation and control applications, offering a robust 100Nm of torque at a maximum speed of 3000 RPM. The Lexium 32 model is designed to thrive in demanding environments, boasting an IP65/IP67 rating that ensures protection against dust and water, making it suitable for various industrial settings. Weighing 55.8 kg, this motor not only delivers precise motion control but also enhances reliability during operation, ensuring that your automated systems run smoothly and efficiently. Whether you're upgrading existing equipment or designing new solutions, this servo motor stands out for its durability and performance.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginGermany

Physical Attributes

Key Width10 mm
Shaft Length80 mm
Motor Flange Size190 mm

Complementary Attributes

Maximum Current Irms100 A, 100 A LXM32MC10N4
Line Rated Current19.6 A
Maximum Axial Force Fa0.2 x Fr
Maximum Operational Altitude3000.0 m
Maximum Radial Force Fr3800 N 1000 rpm3700 N 2000 rpm3600 N 3000 rpm
Us Rated Supply Voltage480 V
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current100 A
Minimum Operational Altitude0.0 m
Maximum In Rated Current19.6 A

Important Information Attributes

Coefficient 1 1-0.031964 N.m/rpm, -0.031964 N.m/rpm
Nominal Speed2000 rpm, 2000 rpm LXM32MC10N4 40 A, 400 V, three phase, 2000 rpm LXM32MC10N4 40 A, 480 V, three phase
Peak Stall Torque230 N.m LXM32MC10N4 40 A, 400 V, three phase, 230 N.m LXM32MC10N4 40 A, 480 V, three phase
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Coefficient 1 30 N.m/rpm3
Coefficient 1 50 N.m/rpm5
Coefficient 2 00 N.m
Continuous Stall Current40 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Feedback Typesingle turn SinCos Hiperface
Inertia0.0 kg.cm² of brake276.7 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia276.7 kg.cm²
Shaft Diameter38 mm
Sizing ReferenceBMH1904P
Stator Electrical Time Constant29.6 ms 20 °C
Stator Resistance0.16 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Type Of Coolingnatural convection
Length Total383 mm
Customs Code8501524000
Continuous Stall Torque100 N.m LXM32MC10N4 40 A, 400 V, three phase, 100 N.m LXM32MC10N4 40 A, 480 V, three phase
Nominal Torque46.8 N.m full speed70.87 N.m half speed, 46.8 N.m LXM32MC10N4 40 A, 400 V, three phase, 46.8 N.m LXM32MC10N4 40 A, 480 V, three phase
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter180 mm
Coefficient 1 22.682E-06 N.m/rpm²
Coefficient 1 40 N.m/rpm4
Coefficient 1 60 N.m/rpm6
Coefficient 2 10 N.m/rpm
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameBMH
Energy Efficiency OptimizedFalse
Holding Brakewithout
Motor Figures480.0 V
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Motor Stacks4
Peak Nominal Torque230.0 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endkeyed
Speed Feedback Resolution131072 points/turn
Stator Inductance2.37 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot130 °C
Torque Constant2.5 N.m/A 120 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Warranty In Months18

Environment Attributes Main

Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP65 standardIP67 with IP67 kit
Packaging Without Single Use PlasticNo

General Attributes

Phasethree phase
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power9800 W LXM32MC10N4 40 A, 400 V, three phase, 9800 W LXM32MC10N4 40 A, 480 V, three phase
Output Current 3s Peak100.0 A
Servo Motor Lexium 32 100Nm 3000rpm IP65/IP67 55.8kg
