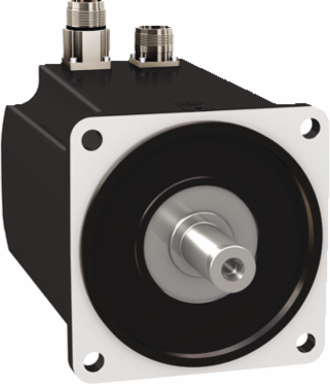

Schneider Electric BMH1402P06A1A Lexium 32 Servo Motor 18.5Nm 4000rpm IP54
- MPN: BMH1402P06A1A
- PPN: SCH-BMH1402P06A1A
CAD
$2642.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Lexium 32 Servo Motor is engineered for high-performance motion control applications, delivering an impressive torque of 18.5Nm at speeds of up to 4000rpm. With its IP54 rating, this motor ensures reliable operation in various environments, making it suitable for demanding automation tasks. As part of Schneider Electric's commitment to advanced engineering, this servo motor combines precision and durability, meeting the needs of modern industrial applications in automation and control.
Documentation & Downloads
Specifications
Additional
- Nominal Output Power
- 3500 W
- Peak Stall Torque
- 50.3 N.m
- Maximum Mechanical Speed
- 4000 rpm
- Continuous Stall Current
- 16.83 A
- Maximum Permanent Current
- 57.4 A
- Torque Constant
- 1.1 N.m/A
- Maximum Radial Force
- 2240 N @ 1000 rpm, 1780 N @ 2000 rpm, 1550 N @ 3000 rpm
- Shaft Diameter
- 24 mm
- Length
- 192 mm
- Centring Collar Diameter
- 130 mm
- Number of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm
- Material
- N/A
- Stator Resistance
- 0.23 Ohm 20 °C
- Stator Electrical Time Constant
- 13 ms 20 °C
- Number of Motor Poles
- 10
- Feedback Type
- Single turn SinCos Hiperface
- Electrical Connection
- Straight connectors
- Holding Brake
- Without
- RoHS Compliance
- Yes
- PVC Free
- Yes
Nominal Torque12.2 N.m
Continuous Stall Torque18.5 N.m
Nominal Speed3000 rpm
Maximum Current Irms57.4 A
Continuous Power4.44 W
Back Emf Constant70.7 V/krpm
Maximum Axial Force0.2 x Fr
Shaft Length50 mm
Motor Flange Size140 mm
Centring Collar Depth3.5 mm
Mounting Holes Diameter11 mm
Mounting SupportInternational standard flange
Type Of CoolingNatural convection
Stator Inductance3 mH 20 °C
Rotor Inertia32 kg.cm²
Number of Motor Stacks2
Speed Feedback Resolution32768 points/turn
Shaft EndSmooth shaft
IP Degree of ProtectionIP54
Mercury FreeYes
Country of OriginDE
