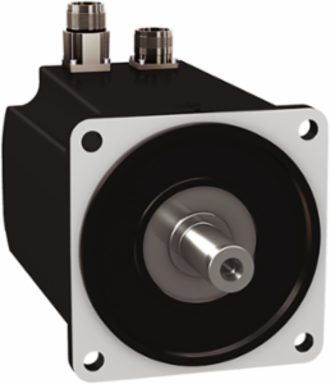

Schneider Electric BMH1403P27F1A Lexium 32 Servo Motor 24Nm 4000rpm IP65/IP67
Schneider Electric BMH1403P27F1A Lexium 32 Servo Motor 24Nm 4000rpm IP65/IP67
- MPN: BMH1403P27F1A
- PPN: SCH-BMH1403P27F1A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4073.68/ EA
Description
Engineered for high-performance applications, the Lexium 32 Servo Motor by Schneider Electric exemplifies precision and reliability in motion control. With a robust output of 24Nm and a remarkable speed of 4000rpm, this motor is ideal for demanding automation tasks that require swift and accurate movements. It features an IP65/IP67 rating, ensuring excellent protection against dust and water, making it suitable for both harsh industrial environments and varied operational conditions. This servo motor stands out as a versatile solution within the automation and control sector, designed to meet the rigorous demands of modern applications in motion control.
Specifications
- Nominal Output Power
- 4700 W
- Continuous Stall Torque
- 24 N.m
- Nominal Speed
- 3000 rpm
- Continuous Stall Current
- 18 A
- Maximum Permanent Current
- 62.3 A
- Holding Torque
- 23 N.m holding brake
- Phase
- Three phase
- Shaft Diameter
- 24 mm (0.94 in)
- Centring Collar Diameter
- 130 mm (5.12 in)
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 165 mm (6.50 in)
- Number Of Motor Poles
- 10
- Shaft End
- Smooth shaft
- Material
- Not specified
- Feedback Type
- Multiturn SinCos Hiperface
- Rotor Inertia
- 50.27 kg.cm8
- Stator Inductance
- 3 mH at 20 6C
- Torque Constant
- 1.34 N.m/A at 120 6C
- Maximum Radial Force
- 2420 N at 1000 rpm, 1920 N at 2000 rpm, 1680 N at 3000 rpm
- Holding Brake
- With
- IP Degree of Protection
- IP65 standard, IP67 with IP67 kit
- RoHS Exemption
- Yes
- Mercury Free
- Yes
- Country of Origin
- Germany
- Device Short Name
- BMH
Peak Stall Torque71.8 N.m
Nominal Torque13.92 N.m
Maximum Mechanical Speed4000 rpm
Maximum Current Irms62.3 A
Brake Pull-In Power19 W
Supply Voltage400...480 V three phase
Length267 mm (10.51 in)
Shaft Length50 mm (1.97 in)
Centring Collar Depth3.5 mm (0.14 in)
Mounting Holes Diameter11 mm (0.43 in)
Motor Flange Size140 mm (5.51 in)
Number Of Motor Stacks3
Mounting SupportInternational standard flange
Type Of CoolingNatural convection
Speed Feedback Resolution32768 points/turn x 4096 turns
Stator Resistance0.22 Ohm at 20 6C
Stator Electrical Time Constant13.6 ms at 20 6C
Back Emf Constant85.9 V/krpm at 120 6C
Maximum Axial Force0.2 x radial force
Second ShaftWithout second shaft end
ComplianceGreen Premium, REACh, RoHS, Mercury free, PVC free
Pvc FreeYes
Warranty18 months
Product CompatibilityLXM32.D72N4 400...480 V three phase
Range CompatibilityLexium 32
