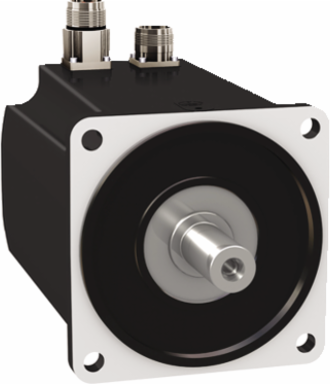

Schneider Electric BMH1403P06A1A Lexium 32 Servo Motor 24Nm 4000rpm 140mm Flange IP54
- MPN: BMH1403P06A1A
- PPN: SCH-BMH1403P06A1A
CAD
$2989.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Lexium 32 Servo Motor from Schneider Electric is engineered for high-performance motion control applications, providing an impressive peak torque of 24 Nm and a maximum speed of 4000 rpm. Designed with a compact 140mm flange, this motor is suitable for a variety of automation and control systems, ensuring precise and reliable operation. Its IP54 rating offers enhanced protection against dust and water, making it a robust choice for industrial environments. This servo motor embodies the perfect blend of power, efficiency, and durability, making it an essential component for modern motion control solutions.
Documentation & Downloads
Specifications
Additional
- Continuous Stall Torque
- 24 N.m
- Nominal Torque
- 13.92 N.m
- Maximum Mechanical Speed
- 4000 rpm
- Continuous Stall Current
- 18 A
- Maximum Current Irms
- 62.3 A
- Network Number Of Phases
- three phase
- Back Emf Constant
- 85.9 V/krpm 120 °C
- Shaft Diameter
- 24 mm
- Motor Flange Size
- 140 mm
- Mounting Holes Diameter
- 11 mm
- Number Of Motor Poles
- 10
- Electrical Connection
- straight connectors
- Second Shaft
- without second shaft end
- Centring Collar Diameter
- 130 mm
- Stator Resistance
- 0.22 Ohm 20 °C
- Stator Electrical Time Constant
- 13.6 ms 20 °C
- IP Degree Of Protection
- IP54
- Weee
- Disposed per EU waste requirements
- Warranty
- 18 months
- Product Compatibility
- LXM32.D72N4 400...480 V three phase
- Device Short Name
- BMH
- Sustainable Offer Status
- Green Premium product
Peak Stall Torque71.8 N.m
Nominal Speed3000 rpm
Nominal Output Power4700 W
Maximum Permanent Current62.3 A
Rated Supply Voltage480 V
Torque Constant1.34 N.m/A 120 °C
Length232 mm
Shaft Length50 mm
Number Of Mounting Holes4
Circle Diameter Of The Mounting Holes165 mm
Rotor Inertia47.5 kg.cm²
Holding Brakewithout
Centring Collar Depth3.5 mm
Type Of Coolingnatural convection
Stator Inductance3 mH 20 °C
Feedback Typesingle turn SinCos Hiperface
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope), Mercury Free, PVC Free, REACh Compliant
Reach RegulationContains SVHC above threshold
Product Or Component Typeservo motor
Range CompatibilityLexium 32
Environmental DisclosureENVPEP111002EN
