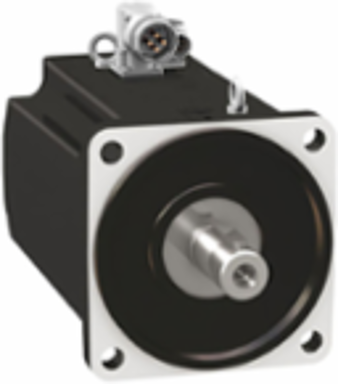

Schneider Electric BMH2053P31A2A Lexium 32 Servo Motor, 84 Nm Torque, 3800 rpm, Keyed Shaft, IP65/IP67

  • MPN: BMH2053P31A2A
  • PPN: SCH-BMH2053P31A2A
  • UNSPSC: 26101205
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 32 Servo Motor from Schneider Electric is engineered to deliver exceptional performance in motion control applications, featuring a robust torque rating of 84 Nm and a high operational speed of up to 3800 rpm. This motor is designed with a keyed shaft, ensuring secure connection and ease of integration into various automation systems. Its IP65/IP67 rating provides ingress protection, making it suitable for demanding environments where dust and moisture exposure may be prevalent. This combination of performance, durability, and adaptability positions the Lexium 32 as a reliable choice for enhancing efficiency in automation and control projects.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginGermany
Weight71000 g

Physical Attributes

Key Width70 mm
Shaft Length80 mm
Motor Flange Size205 mm

Complementary Attributes

Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Current Irms136.1 A LXM32.D72N4
Maximum Operational Altitude3000.0 m
Maximum Radial Force Fr4500 N 1000 rpm3570 N 2000 rpm3120 N 3000 rpm
Us Rated Supply Voltage480 V
Line Rated Current17.9 A
Maximum Axial Force Fa0.2 x Fr
Maximum Mechanical Speed3800 rpm
Maximum Permanent Current107.4 A
Minimum Operational Altitude0.0 m
Maximum In Rated Current17.9 A

Important Information Attributes

Coefficient 1 1-0.0215000000002362 N.m/rpm, -0.0215000000002362 N.m/rpm
Coefficient 1 5-9.19815108E-26 N.m/rpm5, -9.19815108E-26 N.m/rpm5
Nominal Speed2000 rpm, 1200 rpm LXM32.D72N4 24 A, 400 V, three phase, 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
Peak Stall Torque232 N.m LXM32.D72N4 24 A, 400 V, three phase, 232 N.m LXM32.D72N4 24 A, 480 V, three phase
Carbon Footprint Of The End Of Life Phase C1 To C47 kg CO2 eq., 6.6903980344
Carbon Footprint Of The Manufacturing Phase A1 To A3311 kg CO2 eq., 310.82997543
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes215 mm
Coefficient 1 43.957464E-22 N.m/rpm4
Coefficient 2 10 N.m/rpm
Continuous Stall Current25.2 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Motor Figures400.0 V
Mounting Holes Diameter14 mm
Network Number Of Phases3
Number Of Motor Stacks3
Peak Nominal Torque330.0 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endkeyed
Software VersionEIME v5.8.1
Stator Electrical Time Constant21.6 ms 20 °C
Stator Resistance0.32 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint7 319 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Coefficient 1 3-7.877844225E-19 N.m/rpm3, -7.877844225E-19 N.m/rpm3
Continuous Stall Torque84 N.m LXM32.D72N4 24 A, 400 V, three phase, 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Nominal Torque45.0 N.m full speed66.5 N.m half speed, 52.2 N.m LXM32.D72N4 24 A, 400 V, three phase, 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Carbon Footprint Of The Distribution Phase A49.1602211302, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.6298589681, 0.6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B66 992 kg CO2 eq., 6991.5300288739
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter180 mm
Coefficient 1 27.126929575716E-16 N.m/rpm²
Coefficient 1 68.0361E-30 N.m/rpm6
Continuous Power9.6 W
Derating Altitude Scale80.0 m
Derating Temperature Scale80.0 °C
Device Short NameBMH
Feedback Typesingle turn SinCos Hiperface
Inertia0.0 kg.cm² of brake190.0 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportinternational standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Phasethree phase
Product Or Component Typeservo motor
Rotor Inertia190 kg.cm²
Shaft Diameter38 mm
Sizing ReferenceBMH2053P
Speed Feedback Resolution131072 points/turn
Stator Inductance2.15 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant2.76 N.m/A 120 °C
Type Of Coolingnatural convection
Database Version2016-11
Length Total489 mm
Customs Code8501524000
Functional Unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh14270.04

Environment Attributes Main

Take BackNo
China Rohs RegulationX
Carbon Footprint7318.8404824366
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product CompatibilityLXM32.D72N4 400...480 V three phase
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP65 standardIP67 with IP67 kit
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review

General Attributes

Phasethree phase
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power6500 W LXM32.D72N4 24 A, 400 V, three phase, 6500 W LXM32.D72N4 24 A, 480 V, three phase
Output Current 3s Peak136.1 A

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
