Schneider Electric BMH2053P17A2A servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP54, 16 multiturn encoder
Schneider Electric BMH2053P17A2A servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP54, 16 multiturn encoder
- MPN: BMH2053P17A2A
- PPN: SCH-BMH2053P17A2A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

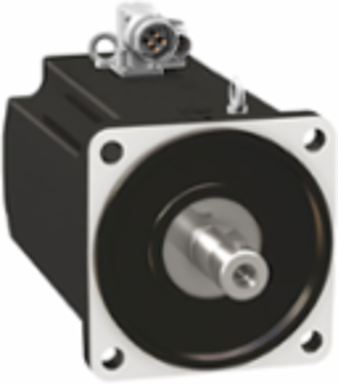

servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP54, 16 multiturn encoder
Specifications
Complementary
- Circle Diameter Of The Mounting Holes
- 215 mm
- Continuous Power
- 9.6 W
- Maximum Radial Force Fr
- 4500 N 1000 rpm || 3570 N 2000 rpm || 3120 N 3000 rpm
- Rotor Inertia
- 190 kg.cm²
- Back Emf Constant
- 218 V/krpm 120 °C
- Centring Collar Depth
- 4 mm
- Shaft Length
- 80 mm
- Length
- 489 mm
- Net Weight
- 67 kg
- Stator Inductance
- 6.9 mH 20 °C
- [Us] Rated Supply Voltage
- 480 V
- Shaft Diameter
- 38 mm
- Mounting Holes Diameter
- 14 mm
- Feedback Type
- multiturn SinCos Hiperface
- Range Compatibility
- Lexium 32
- Torque Constant
- 3.5 N.m/A 120 °C
Maximum Permanent Current107.4 A
Stator Electrical Time Constant21.6 ms 20 °C
Number Of Motor Stacks3
Number Of Motor Poles10
Maximum Axial Force Fa0.2 x Fr
Second Shaftwithout second shaft end
Network Number Of Phasesthree phase
Maximum Current Irms72 A LXM32.D72N4
Centring Collar Diameter180 mm
Motor Flange Size205 mm
Number Of Mounting Holes4
Key Width70 mm
Type Of Coolingnatural convection
Stator Resistance0.32 Ohm 20 °C
Continuous Stall Current25.2 A
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Maximum Mechanical Speed
- 3800 rpm
- Holding Brake
- without
- Product Or Component Type
- servo motor
- Peak Stall Torque
- 232 N.m LXM32.D72N4 24 A, 400 V, three phase || 232 N.m LXM32.D72N4 24 A, 480 V, three phase
- Ip Degree Of Protection
- IP54 standard
- Nominal Speed
- 1200 rpm LXM32.D72N4 24 A, 400 V, three phase || 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
- Nominal Torque
- 52.2 N.m LXM32.D72N4 24 A, 400 V, three phase || 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
- Continuous Stall Torque
- 84 N.m LXM32.D72N4 24 A, 400 V, three phase || 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Mounting Supportinternational standard flange
Speed Feedback Resolution32768 points/turn x 4096 turns
Nominal Output Power6500 W LXM32.D72N4 24 A, 400 V, three phase || 6500 W LXM32.D72N4 24 A, 480 V, three phase
Product CompatibilityLXM32.D72N4 400...480 V three phase
Shaft Endkeyed
Electrical Connectionrotatable right-angled connectors
Device Short NameBMH
