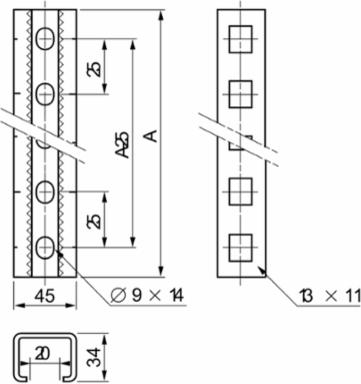

Schneider Electric NSYTVR7 Vertical Uprights 750 mm, Zinc-Coated Steel, Adjustable Height, Multi-Purpose
Schneider Electric NSYTVR7 Vertical Uprights 750 mm, Zinc-Coated Steel, Adjustable Height, Multi-Purpose
- MPN: NSYTVR7
- PPN: SCH-NSYTVR7
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$41.75/ EA
Description
Designed for versatility and durability, these vertical uprights from Schneider Electric are crafted from zinc-coated steel, ensuring long-lasting performance in various applications. With a nominal height of 750 mm and adjustable height settings every 2.5 mm, these uprights provide flexible mounting solutions tailored to your needs. The sturdy construction and rear fixing mode with M8 bosses allow for secure installation, making them ideal for multi-purpose use in the Thalassa range. Additionally, with a carbon footprint of just 13.41 kg CO2 equivalent over their life cycle, these uprights reflect a commitment to environmental responsibility while maintaining exceptional quality.
Features
- Vertical uprights for fixing plates and rails.
- They can be fixed to the fixing brackets of the mounting plate or to the uprightfixing bracket (refNSYMFB ).
- Adjustable height in steps of 2.5 mm (with quarter-turn nuts, ref. or or 25 mm (with cage nuts, ref. ).
- Material: Galvanized steel
- Thickness: 20/10e mm
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Carbon Footprint Of The Distribution Phase A4
- 0.363051766, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.418190311, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-10-18
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 2 mm
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Adjustment
- adjustable in height every 2.5 mm with quarter-turn nuts
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportdirect fixing on the rear inserts, step slide
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 4.433698581
Carbon Footprint Of The Manufacturing Phase A1 To A38 kg CO2 eq., 8.194893426
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cut Out Dimensions11 x 13 mm
Device Composition2 upright
Fixing Modebosses inserts M8 - rear of enclosure
Package Weight Lbs1.886 kg
Product Or Component Typetechnical upright
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint13 kg CO2 eq.
Medium DescVertical uprights height 750mm. zinc-coated steel. Supply: 2 standard uprights.
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; FR
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 13.40983408
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- technical upright
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 24.61 in
Depth34 mm
