Schneider Electric NSYTVR15 1500 mm Technical Uprights, Zinc-Coated Steel, Adjustable Depth 25 mm
Schneider Electric NSYTVR15 1500 mm Technical Uprights, Zinc-Coated Steel, Adjustable Depth 25 mm
- MPN: NSYTVR15
- PPN: SCH-NSYTVR15
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$77.72/ EA
Description

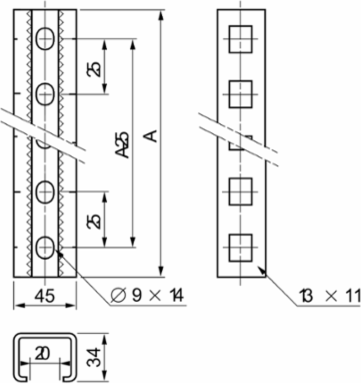

Elevate your installation capabilities with these vertical uprights, crafted from durable zinc-coated steel, offering robust support for a variety of applications. Designed specifically for compatibility with the Thalassa PLA range, these uprights feature an adjustable height of 1500 mm and a depth that can be modified every 25 mm, allowing for versatile configurations to meet your specific needs. With a sleek width of 45 mm and a solid thickness of 2 mm, these uprights ensure stability while maintaining a compact profile, making them an ideal choice for technical enclosures. Backed by an 18-month warranty, they promise reliability and performance for your projects.
Features
- Vertical uprights for fixing plates and rails.
- They can be fixed to the fixing brackets of the mounting plate or to the uprightfixing bracket (refNSYMFB ).
- Adjustable height in steps of 2.5 mm (with quarter-turn nuts, ref. or or 25 mm (with cage nuts, ref. ).
- Material: Galvanized steel
- Thickness: 20/10e mm
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 1500 mm, - H: 1500 mm, - H: 1500 mm, - H: 1500 mm
- Carbon Footprint Of The Distribution Phase A4
- 0.795787911, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.916648328, 0.9 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cut Out Dimensions
- 11 x 13 mm
- Device Composition
- 2 upright
- Fixing Mode
- bosses inserts M8 - rear of enclosure
- Package Weight Lbs
- 4.134 kg
- Product Or Component Type
- technical upright
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Medium Desc
- Vertical uprights height 1500mm. zinc-coated steel. Supply: 2 standard uprights.
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportstep slide, direct fixing on the rear inserts
Carbon Footprint Of The End Of Life Phase C1 To C410 kg CO2 eq., 9.718403995
Carbon Footprint Of The Manufacturing Phase A1 To A318 kg CO2 eq., 17.96271974
Adjustmentadjustable in depth every 25 mm with caged nuts, adjustable in height every 2.5 mm with quarter-turn nuts
Local Publishable Date2025-10-18
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Surface Finishzinc coated
Thickness2 mm
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 29.39355997
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- technical upright
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 54.13 in
Depth34 mm
