Lifting Eyebolts Set of 4 M12 Cast Steel Galvanized 1360 kg Load
Schneider Electric

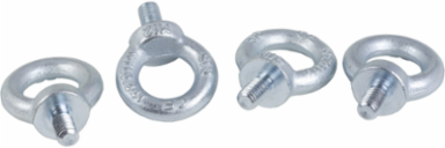

Schneider Electric NSYSFEB Lifting Eyebolts Set of 4 M12 Cast Steel Galvanized 1360 kg Load

  • MPN: NSYSFEB
  • PPN: SCH-NSYSFEB
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $23.74

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Set of M12 lifting eyebolt for Spacial SF/SFHD/SFM, Prisma PH. H is62.5 x W is55 x D is24 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, United States
    Width
    2.17 in
    Height2.46 in
    Depth24 mm

    Important Information Attributes

    Persona Type Ids
    LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Carbon Footprint Of The Distribution Phase [A4]
    0.148416178, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.170956909, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    0 kg CO2 eq., 0
    Local Publishable Date
    2025-07-28
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1916
    China Rohs In Scope
    No
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Device Application
    multi-purpose
    Diameter
    29 mm
    Fixing Mode
    screwed
    Material
    cast steel
    Mounting Support
    directly in the axis of the uprights
    Product Availability
    Stock - Normally stocked in distribution facility
    Quantity Per Set
    set of 1
    Returnability
    Yes
    Surface Finish
    galvanized
    Total Lifecycle Carbon Footprint
    5 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    62.5 mm
    Width Nominal
    55 mm
    Accessory / Separate Part Category
    lifting accessory
    Package Weight(Lbs)
    692.000 g
    Take-back
    No
    Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.812503503
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.350086337
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Composition4 eyebolt
    Energy Efficiency OptimizedFalse
    Iso ThreadM12
    Mounting Locationenclosure top
    Permanent Permissible Load340 kg for 1 eyebolt vertical direction
    Product Or Component Typelifting eye
    RangePanelSeT
    Software Versionv5.9.4
    Sustainable PackagingNo
    Pep CodeENVPEP1109023EN
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y20
    Recyclability Potential, In %98
    Height Useful62.5 mm
    Width Real55 mm
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Reach Free Shvc
    Yes
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    No
    Environmental Disclosure
    ENVPEP1109023EN
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1109023EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint5.481962926
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-03-30
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    lifting eye

    ETIM

    ETIM 8
    EC002621
    ETIM 9EC002621

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
