Spacial SM M12 Lifting Eyebolt Set of 4 - Galvanized Cast Steel, 1360 kg Load

Documentation & Downloads

Schneider Electric NSYSMEB Spacial SM M12 Lifting Eyebolt Set of 4 - Galvanized Cast Steel, 1360 kg Load

MPN: NSYSMEB
PPN: SCH-NSYSMEB

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$36.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

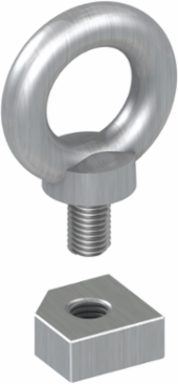

Set of M12 lifting eyebolt for Spacial SF/SFM. H is 61.5 x W is 54 x D is 26 mm. Mounting on enclosure top. Permanent permissible load 1360 kg slinging at 60°. Cast steel, galvanized surfacefinish. Set of 4 fixing nuts and 4 eyebolt.

Documentation & Downloads

Specifications

Key Specifications

Range Compatibility: Spacial Spacial SF || Spacial Spacial SM

Quantity Per Set: set of 1

Device Composition: 4 eyebolt || 4 fixing nuts

Range: Spacial

Accessory / Separate Part Categorylifting accessory

Product Or Component Typelifting bracket || lifting eye

Device Applicationmulti-purpose

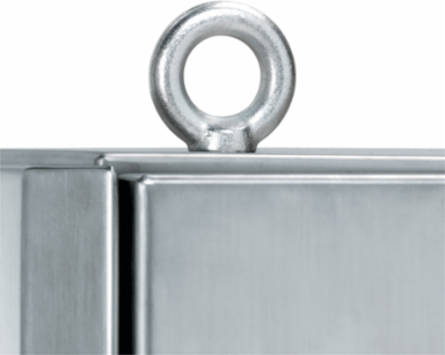

Mounting Locationenclosure top

Complementary

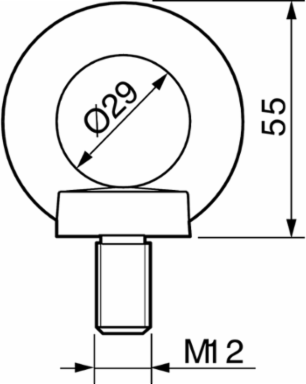

Iso Thread: M12

Height: 61.5 mm

Surface Finish: galvanized

Depth: 26 mm

Permanent Permissible Load: 340 kg for 1 eyebolt vertical direction

Width54 mm

Materialcast steel

Diameter29 mm

Fixing Modescrewed

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP110923EN

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Reach Free Of SvhcYes
