Schneider Electric LA9D65A69 Set of power connections, parallel and reverser busbars, for 3P reversing contactors assembly, LC1D40A-D80A

Set of power connections, parallel and reverser busbars, for 3P reversing contactors assembly, LC1D40A-D80A
  • MPN: LA9D65A69
  • PPN: SCH-LA9D65A69

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$145.83/ EA

    Description

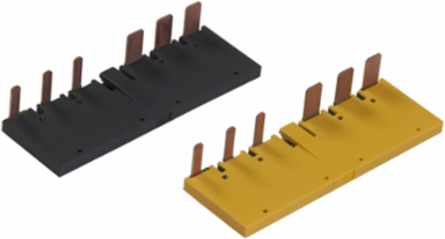

    TeSys D set of power connections, for 3-pole contactors LC1D40A-D80A. To be used for assembling contactors in reversing motor starters. It includes a set of parallel bars for the line side, a set of reverser bars for the load side. Green Premium compliant (RoHS/REACh).

    Specifications

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

    Specifications

    Range Of Product
    TeSys Deca
    Poles Description
    3P
    Product Or Component Type
    set of connections
    Device Short Name
    LA9D
    Range CompatibilityTeSys TeSys D || TeSys TeSys Deca
    Electrical Circuit Typereversing contactor
    Product CompatibilityLC1D40A || LC1D50A || LC1D65A || LC1D80A
    RangeTeSys || Linergy

    Complementary

    Net Weight
    0.13 kg

    Contractual warranty

    Warranty
    18 months
