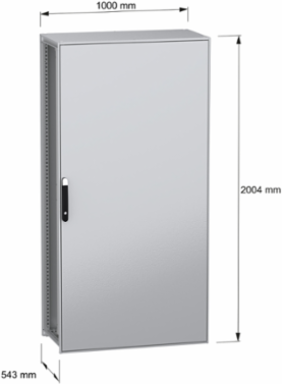

Schneider Electric NSYSFN201050P Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, mounting plate, 2000x1000x500mm, IP55

MPN: NSYSFN201050P
PPN: SCH-NSYSFN201050P

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

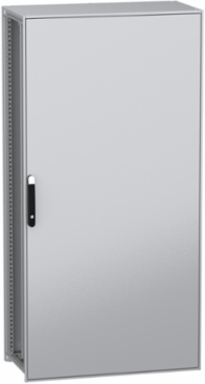

This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 1000 mm and 500 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, France, Mexico

Physical Attributes

Color	enclosure Gray RAL 7035), handle Black RAL 9005)
Enclosure Nominal Width	1000 mm

Enclosure Nominal Height	2000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	2 sliding rails4 mounting plate quick-fixing brackets1 structure, 1 door1 locking system with handle door, 1 rear panel, 1 roof, 1 mounting plate
Removable Parts	door by screws hingemounting plate by screws mounting plate bracket, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
Certificate Agency	IEC 62208, UL, cUL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	337 kg CO2 eq., 337.0527447
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	383 kg CO2 eq., 382.7268309
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	45 %
Door Opening Side	reversible 120 °)
Enclosure Mounting	floor-standing
Lock Type	4 points lock, handle with 5 mm double bar insert front door
Number Of Doors	front 1
Product Name	PanelSeT SFN
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Type Of Gland Plate	without gland plate
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	97
Package Weight(Lbs)	148.800 kg
Take-back	No
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]	-110396.6792

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Material	frame galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass
Structure Type	formed from a single section, vertical uprights joined with top and bottom frames, panels and doors built into the structure, perforated structure with a pitch of 25 mm
Carbon Footprint Of The Distribution Phase [A4]	28.21507152, 28 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	39.94577693, 40 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-11-20
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Type	Solid front
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	788 kg CO2 eq.
Pep Code	ENVPEP2301018EN
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18
Customs Code	9403200090

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 3R/12
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	45 %
Mercury Free	Yes
Carbon Footprint	787.940424
Environmental Disclosure	ENVPEP2301018EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
