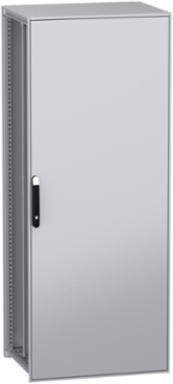

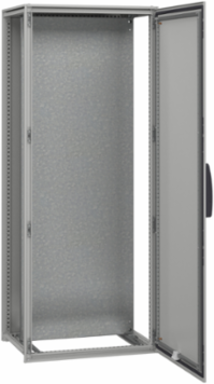

Schneider Electric NSYSFN20860P Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, mounting plate, 2000x800x600mm, IP55
- MPN: NSYSFN20860P
- PPN: SCH-NSYSFN20860P
CAD
$4252.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

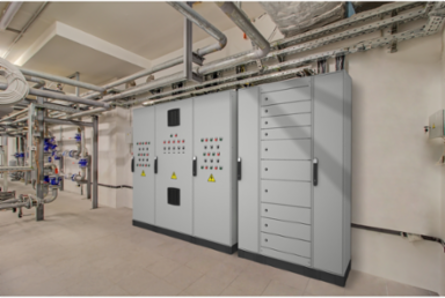

This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 800 mm and 600 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France, Mexico
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)

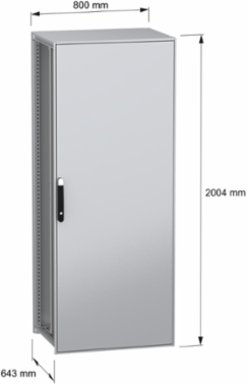

- Enclosure Nominal Width
- 800 mm
Enclosure Nominal Height2000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL

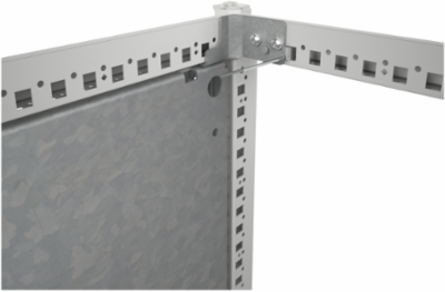

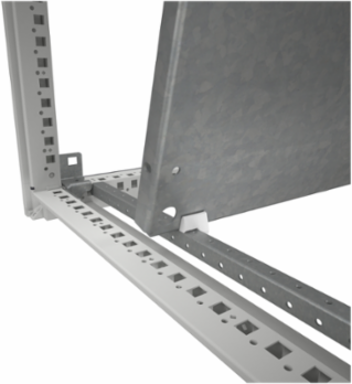

- Device Composition
- 2 sliding rails4 mounting plate quick-fixing brackets1 structure, 1 door1 locking system with handle door, 1 rear panel, 1 roof, 1 mounting plate

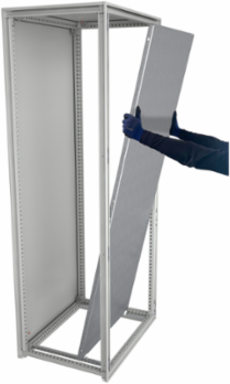

- Removable Parts

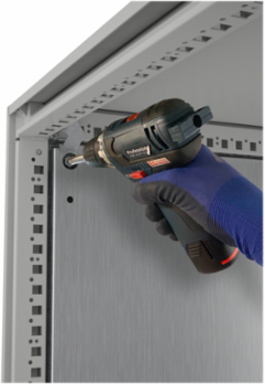

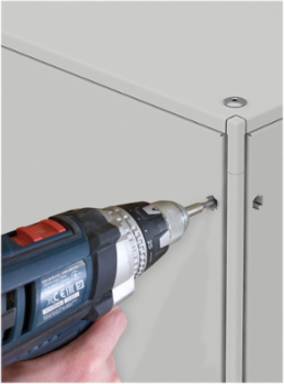

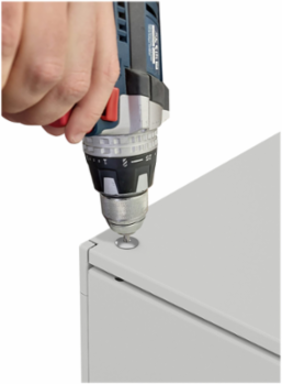

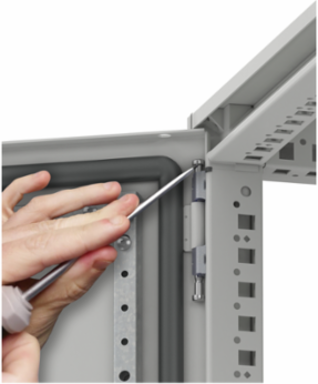

- door by screws hingemounting plate by screws mounting plate bracket, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
- Certificate Agency
- IEC 62208, UL, cUL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 319 kg CO2 eq., 318.5
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 362 kg CO2 eq., 361.66
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Distribution Carbon Footprint
- 26.662
- End Of Life Carbon Footprint
- 318.5
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2507020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2306
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 45 %
- Door Opening Side
- reversible 120 °)
- Enclosure Mounting
- floor-standing

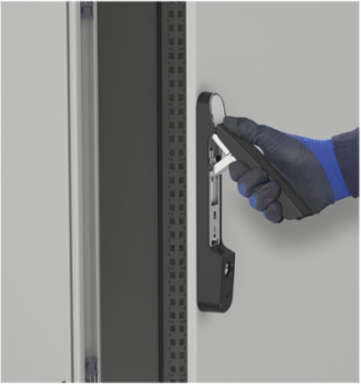

- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- Number Of Doors
- front 1
- Product Name
- PanelSeT SFN
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 97
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
- Acidification (Ap) (Mole Of H+ Equiv) End Of Life [C1-c4]
- 1.0932
- Climate Change - Biogenics ( Kg Co2 Eq.) Total Life Cycle
- 1.8057
- Climate Change - Biogenics ( Kg Co2 Eq.) Installation [A5]
- -3.0972
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Total Life Cycle
- 742.766
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Distribution [A4]
- 26.662
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
- 318.5
- Climate Change - Total ( Kg Co2 Eq.) Total Life Cycle
- 744.569
- Climate Change - Total ( Kg Co2 Eq.) Distribution [A4]
- 26.662
- Climate Change - Total ( Kg Co2 Eq.) End Of Life [C1-c4]
- 318.5
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle
- 36253.41
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
- 324.75
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 23669
- Ecotoxicity (Fresh Water) (Ctue) Total Life Cycle
- 3551.39
- Ecotoxicity (Fresh Water) (Ctue) Distribution [A4]
- 109.47
- Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]
- 230.92
- Exported Energy (Mj By Energy Vector) Installation [A5]
- 4.9731
- Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
- 118.3
- Impacts Related To Land Use/Soil Quality (-) Total Life Cycle
- -110
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]
- 15.161
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) End Of Life [C1-c4]
- 1.9838
- Marine Aquatic Eutrophication (Kg Of N Equiv) Benefits/Loads Beyond System Boundaries [D]
- -9.3111
- Materials For Recycling (Kg) Installation [A5]
- 19.427
- Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
- 3.3597
- Net Use Of Fresh Water (M3) Benefits/Loads Beyond System Boundaries [D]
- -110.69
- Non-hazardous Waste Disposed Of (Kg) Installation [A5]
- 107.72
- Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Benefits/Loads Beyond System Boundaries [D]
- -21.549
- Terrestrial Eutrophication (Mole Of N Equiv) Total Life Cycle
- 6.0451
- Terrestrial Eutrophication (Mole Of N Equiv) End Of Life [C1-c4]
- 2.1408
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 16.808
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 36705.13
- Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
- 324.75
- Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]
- 23669
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 394.62
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- -23800
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 36237.41
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]
- 324.75
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
- 23669
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 506.49
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -58868
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]
- 56.722
- Use Of Secondary Materials (Kg) Total Life Cycle
- 59.868
- Customs Code
- 9403200090
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialframe galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass
Structure Typeformed from a single section, perforated structure with a pitch of 25 mm, panels and doors built into the structure, vertical uprights joined with top and bottom frames
Carbon Footprint Of The Distribution Phase [A4]26.662, 27 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]37.747, 38 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-20
Stocking FlagY
Manufacturing Carbon Footprint361.66
Installation Carbon Footprint37.747
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door TypeSolid front
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionplain
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint745 kg CO2 eq.
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Carbon Footprint (Kg Co2 Eq Total Life Cycle)744.569
Package Weight(Lbs)132.000 kg
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Manufacturing [A1-a3]1.5217
Acidification (Ap) (Mole Of H+ Equiv) Benefits/Loads Beyond System Boundaries [D]-39.246
Climate Change - Biogenics ( Kg Co2 Eq.) Manufacturing [A1-a3]4.9029
Climate Change - Biogenics ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-245.94
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]356.76
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Installation [A5]40.844
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-7965.3
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]361.66
Climate Change - Total ( Kg Co2 Eq.) Installation [A5]37.747
Climate Change - Total ( Kg Co2 Eq.) Benefits/Loads Beyond System Boundaries [D]-8211.3
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]11926
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]333.66
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-80520
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]2996.2
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]214.8
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-88899
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]245.37
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-14163
Impacts Related To Land Use/Soil Quality (-) Manufacturing [A1-a3]-110
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Installation [A5]1.4819
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Benefits/Loads Beyond System Boundaries [D]-554.07
Materials For Recycling (Kg) Total Life Cycle131.947
Materials For Recycling (Kg) End Of Life [C1-c4]112.52
Net Use Of Fresh Water (M3) End Of Life [C1-c4]2.8498
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]599.34
Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-85562
Radioactive Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-4.5754
Terrestrial Eutrophication (Mole Of N Equiv) Manufacturing [A1-a3]3.0284
Terrestrial Eutrophication (Mole Of N Equiv) Benefits/Loads Beyond System Boundaries [D]-79.426
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]16.808
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]12321
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]390.38
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]-104320
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]56.722
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]16.808
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]11910
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]333.66
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-80520
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]506.49
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]-111.86
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]35068
Use Of Secondary Materials (Kg) Manufacturing [A1-a3]59.868
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Circularity Profile
- ENVEOLI2507020EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level45 %
Mercury FreeYes
Carbon Footprint744.569
Environmental DisclosureENVPEP2301018EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Loading video…
Accessories
Loading carousel layout...
Loading carousel layout...
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$4252.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$4252.74/ EA
Loading add to cart quantity...
