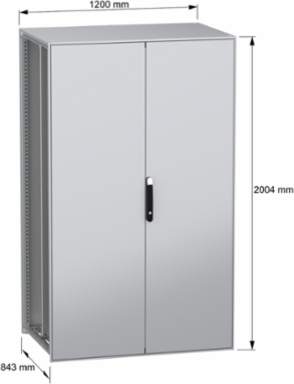

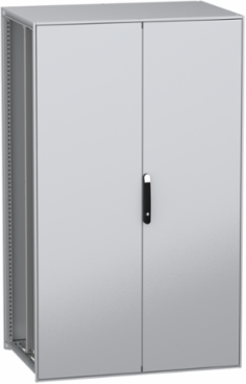

Schneider Electric NSYSFN2012802DP Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, plate, 2000x1200x800mm, 2 doors, IP55

MPN: NSYSFN2012802DP
PPN: SCH-NSYSFN2012802DP
UNSPSC: 39121324

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

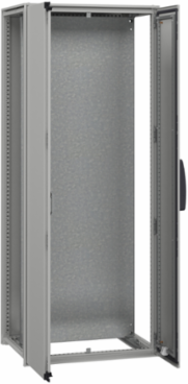

This PanelSeT SFN is a double-door floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2000 mm, 1200 mm and 800 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The doors and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, two plain doors, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The doors have an aperture up to 120 degrees. The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.

Features

Sustainable design that contains recycled steel manufactured with renewable energy to face environmental challenges.
IEC and UL compliant making it sturdy, robust, and durable for maximum component protection.
Available in mounted, kit, and customized versions to optimize your configurations coping with specific needs.
Ergonomic design for convenience & time-saving operations.
Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	187000 g

Physical Attributes

Color	enclosure Gray RAL 7035), handle Black RAL 9005)
Enclosure Nominal Width	1200 mm

Enclosure Nominal Height	2000 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	2 sliding rails, 4 mounting plate quick-fixing brackets left door, 1 structure right door, 1 rear panel, 1 roof, 1 mounting plate, 2 door, 1 locking system with handle, 1 locking bar system 4 points right door, 1 locking bar system 2 points left door
Material	frame galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass
Structure Type	vertical uprights joined with top and bottom frames, perforated structure with a pitch of 25 mm, panels and doors built into the structure, formed from a single section
Carbon Footprint Of The Distribution Phase A4	35.45845681, 35 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	50.20067397, 50 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-24
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Enclosure Mounting	floor-standing
Lock Type	4 points lock, handle with 5 mm double bar insert front right door
Number Of Doors	front face 2
Product Name	PanelSeT SFN
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Type Of Gland Plate	without gland plate
Data Source	extrapolated product
Customs Code	9403200090
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional Unit Unit	unit
Recyclability Potential In %	97

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Opening Side	left 120 °), right 120 °)
Removable Parts	door by screws hingemounting plate by screws mounting plate bracket, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
Certificate Agency	IEC 62208, UL, cUL
Carbon Footprint Of The End Of Life Phase C1 To C4	424 kg CO2 eq., 423.5810702
Carbon Footprint Of The Manufacturing Phase A1 To A3	481 kg CO2 eq., 480.9806275
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Average Percentage Of Recycled Metal Content	45 %
Door Type	Solid front
Energy Efficiency Optimized	False
Mounting Plate Description	plain
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	990 kg CO2 eq.
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	990.2208286
Environmental Disclosure	ENVPEP2301018EN
Ip Degree Of Protection	IP55 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	45 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Nema Degree Of Protection	NEMA 3R/12
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
