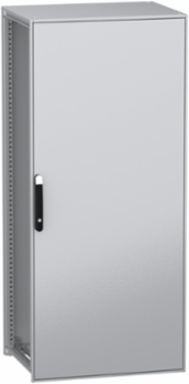

Schneider Electric NSYSFN18860 PanelSeT SFN Modular Electrical Enclosure, 1800x800x600mm, IP55, 77.7kg
- MPN: NSYSFN18860
- PPN: SCH-NSYSFN18860
CAD
$3215.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Schneider Electric modular electrical enclosure is designed to provide robust protection for your electrical systems in demanding environments. With an IP55 rating, it ensures excellent resistance to dust and water ingress, making it ideal for use in various industrial applications. Measuring 1800x800x600mm, this enclosure offers ample space for housing electrical components securely, while its modular design allows for customization to meet specific needs. Built to last and facilitate optimal organization, the NSYSFN18860 PanelSeT is a reliable choice for safeguarding critical electrical infrastructure.
Documentation & Downloads
Specifications
Additional
- Enclosure Mounting
- floor-standing
- Enclosure Nominal Width
- 800 mm (31.50 in.)
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- Door Opening Side
- reversible 120°
- Material
- frame galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30% fibre glass
- IP Rating
- IP55 IEC 60529
- IK Rating
- IK10 IEC 62262
- Standards
- IEC 62208, IEC 62262
- Device Composition
- 2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof
- Type Of Gland Plate
- without gland plate
- Device Application
- multi-purpose
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
- Sustainable Offer Status
- Green Premium product
- Warranty
- 18 months
- Structure Type

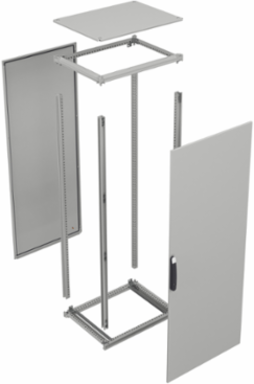

- vertical uprights joined with top and bottom frames; panels and doors built into structure; perforated structure with 25 mm pitch; formed from single section

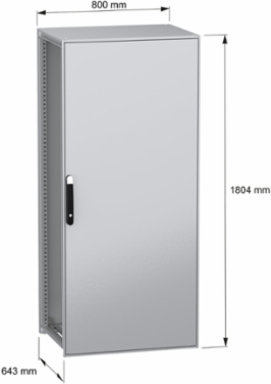

Enclosure Nominal Height1800 mm (70.87 in.)
Enclosure Nominal Depth600 mm (23.62 in.)
Number of Doors1 front
Door Typeplain front
Surface Finishepoxy-polyester powder
NEMA Degree of ProtectionNEMA 3R/12
Weight77.7 kg (171.30 lb)
Accessibility for Operationrear, sides of enclosure, front
Mounting Plate Descriptionwithout mounting plate
Colorenclosure Gray RAL 7035, handle Black RAL 9005
ComplianceREACH free of SVHC; proactive EU RoHS and China RoHS compliant; mercury free
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Reach RegulationFree of SVHC above threshold
Mercury FreeYes
Environmental DisclosureENVPEP2301018_V1
RangePanelSeT

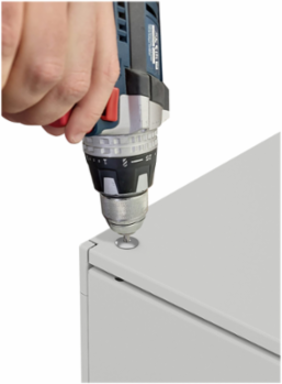

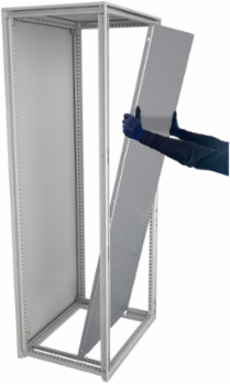

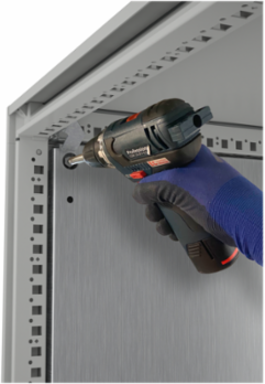

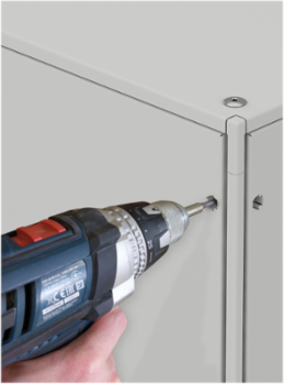

Removable Partsdoor, rear panel, roof, mounting plate bracket, sliding rail (all by screws)
