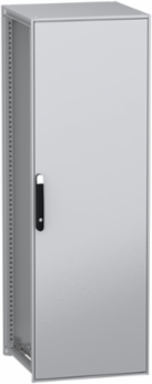

Schneider Electric NSYSFN18660 PanelSeT SFN Floor Standing Modular Enclosure 1800x600x600mm IP55
- MPN: NSYSFN18660
- PPN: SCH-NSYSFN18660
CAD
$3024.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Constructed for robust performance in industrial environments, the Schneider Electric Modular Enclosure offers a reliable solution for housing critical electrical components. This floor-standing model, measuring 1800x600x600mm, provides ample space while ensuring protection with its IP55 rating, safeguarding against dust and water ingress. Designed by Schneider Electric, this enclosure is ideal for maintaining organization and security of your electrical systems, making it a vital choice for modern panel installations. Its modular design facilitates flexible configurations, adapting easily to the specific needs of your project.
Documentation & Downloads
Specifications
Additional
- Number of Doors
- front 1
- Enclosure Nominal Width
- 600 mm (23.62 in)
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- IP Rating
- IP55 IEC 60529
- IK Degree of Protection
- IK10 IEC 62262
- Door Type
- plain front
- Mounting
- floor-standing
- Color
- enclosure gray RAL 7035, handle black RAL 9005
- Accessibility for Operation
- front, rear, sides of enclosure
- Net Weight
- 65.4 kg (144.18 lb)
- RoHS Compliance
- Pro-active compliance, Mercury free, REACh free of SVHC, China RoHS
- Range
- PanelSeT
- Device Application
- multi-purpose

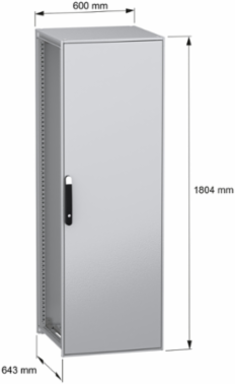

Enclosure Nominal Height1800 mm (70.87 in)
Enclosure Nominal Depth600 mm (23.62 in)
Materialframe galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30% fibre glass
NEMA Degree of ProtectionNEMA 3R/12
StandardsIEC 62208, IEC 62262, IEC 60529
Door Opening Sidereversible 120°
Surface Finishepoxy-polyester powder

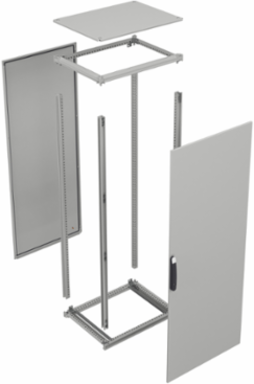

Device Composition2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof

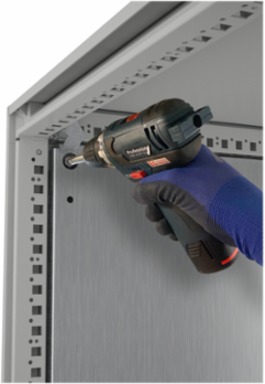

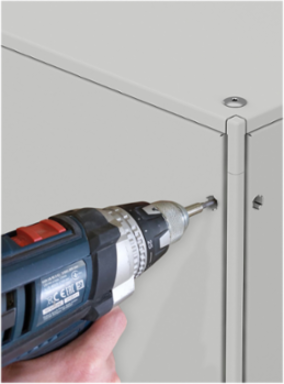

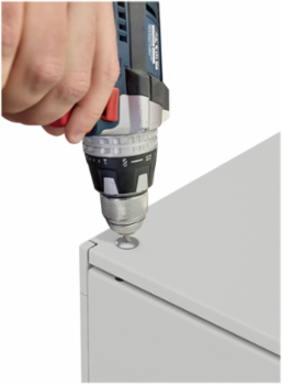

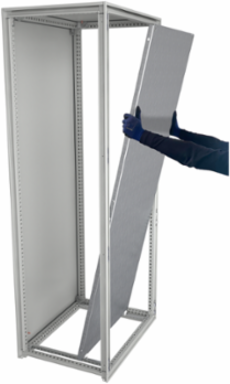

Removable Partsdoor, rear panel, roof, mounting plate bracket, sliding rail (all by screws)
SustainabilityGreen Premium product
Product Or Component Typesuitable enclosure
Warranty18 months
