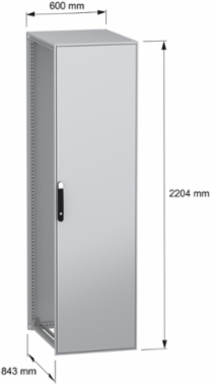

Schneider Electric NSYSFN22680 Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2200x600x800mm, IP55
Schneider Electric NSYSFN22680 Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2200x600x800mm, IP55
- MPN: NSYSFN22680
- PPN: SCH-NSYSFN22680
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3357.29/ EA
Description

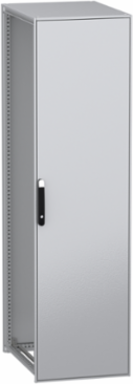

This PanelSeT SFN is a floor standing modular decarbonized steel electrical enclosure that is suitable for multi-purpose applications. It contains recycled steel, which is produced with renewable energy, resulting into a significant reduction of CO2 emissions. It has a nominal height, width, and depth of 2200 mm, 600 mm and 800 mm, respectively. The frame and uprights of the enclosure are made of galvanized steel for durability. The door and panels are made of steel sheets, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color with a black (RAL 9005) handle, one plain door, one rear panel, one roof, two sliding rails and one set of quick-fixing mounting plate brackets. The door has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. The enclosure has an IP55 rating, which makes it resistant to dust, water and oil ingress. The enclosure is also resistant to impacts, with an IK10 rating. Operation is convenient due to rear, front, and side access.
Specifications
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height2200 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof
- Removable Parts
- door by screws hinge, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
- Carbon Footprint Of The Distribution Phase A4
- 18.0895015, 18 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 25.61039731, 26 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Type
- Solid front
- Energy Efficiency Optimized
- False
- Mounting Plate Description
- without mounting plate
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- suitable enclosure
- Returnability
- Yes
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 505 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Functional Unit Unit
- unit
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In 2
- 97
- Pn
- 1
- Climate Change Total Kg Co2 Eq End Of Life C1 C4 2
- 216.0943
- Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 2
- 16058.8257
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 2
- 16058.8257
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialframe galvanised steel, uprights galvanised steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30 % fibre glass
Structure Typeformed from a single section, vertical uprights joined with top and bottom frames, panels and doors built into the structure, perforated structure with a pitch of 25 mm
Carbon Footprint Of The End Of Life Phase C1 To C4216 kg CO2 eq., 216.0943
Carbon Footprint Of The Manufacturing Phase A1 To A3245 kg CO2 eq., 245.3772827
Certificate AgencyIEC 62208, UL, cUL
Local Publishable Date2025-07-10
Stocking FlagN
End Of Life Carbon Footprint216.0943
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2306
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content45 %
Door Opening Sidereversible 120 °)
Enclosure Mountingfloor-standing
Lock Type4 points lock, handle with 5 mm double bar insert front door
Number Of Doorsfront 1
Product NamePanelSeT SFN
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Type Of Gland Platewithout gland plate
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Offer Owner Code190789
Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 2216.0943
Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 216058.8257
Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D 2-70778.5161
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 505.1714815
- Environmental Disclosure
- ENVPEP2301018EN
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level45 %
Mercury FreeYes
Circularity ProfileENVEOLI2507020EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/12
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2301018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Spain
