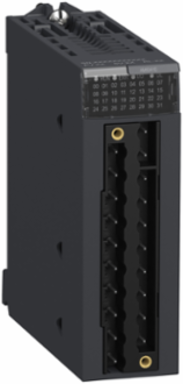

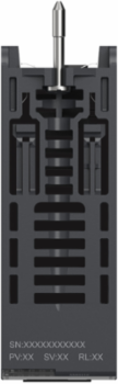

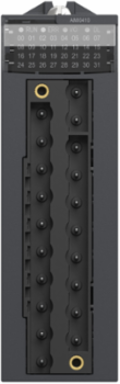

Analog Isolated Input Module, 4 Inputs, 16 Bits, IP20 Protection

Analog Isolated Input Module, 4 Inputs, 16 Bits, IP20 Protection - https://images.province-electric.com/SCH-BMXAMI0410/isolated-analog-input-module-medium-alt-xbke.webp

Documentation & Downloads

Schneider Electric BMXAMI0410 Analog Isolated Input Module, 4 Inputs, 16 Bits, IP20 Protection

MPN: BMXAMI0410
PPN: SCH-BMXAMI0410

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

CAD

$1474.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: United States

Complementary Attributes

Maximum Conversion Value: +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V 1...5 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA

Minimum Crosstalk Attenuation80 dB

Important Information Attributes

Persona Type Ids: EU, OM8, SI

Digital Value Format: - 32768 to + 32767 in maximum user scale, +/- 10000 by default, - 32768 to + 32767 in maximum user scale, +/- 10000 by default

Measurement Error: <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C<= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C0.075 % of full scale +/- 10 V 25 °C, 0.15 % of full scale +/- 20 mA 25 °C

Power Consumption In W: 0.82 W 24 V DC typical1.30 W 24 V DC maximum0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum

Temperature Drift: 15 ppm/°C +/- 10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C 0...10 V, 15 ppm/°C 0...5 V, 15 ppm/°C 1...5 V30 ppm/°C +/- 20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C 4...20 mA

Carbon Footprint Of The Distribution Phase [A4]: 0.0224913455, 0 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]: 0.0457999515, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2 B3 B4 B6]: 59 kg CO2 eq., 58.5991843575

Local Publishable Date: 2026-03-25

Stocking Flag: N

Device Type: PLC System - PLC Component

Traceability: Yes

Average Life Duration: 20 year(s)

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 5

Without Single Use Plastic: Yes

Tier Id: 1

Function Option Id: STANDARD

Market Segmentation Id: INDUSTRIAL

Product Kit Identifier: N

Current Consumption: 150 mA 3.3 V DC45 mA 24 V DC

Fast Read Cycle Time: 1 ms + 1 ms x number of channels used

Nominal Read Cycle Time: 5 ms for 4 channels

Product Availability: Stock - Normally stocked in distribution facility

Protective Treatment: standard version

Recalibration: internal

Shock Resistance: 30 gn

Sustainable Packaging: Yes

Type Of Filter: first order digital filtering

Pep Code: ENVPEP2311046EN

Pep Verification Date: 2023-11-01

Psr Version: PSR-0005-ed2-2016 03 29

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime In Y: 10

Energy Model - Manufacturing [A1-a3]: Energy model used: Electricity Mix; Production mix; Low voltage; FR

Energy Model - Use [B6]: Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS

Recyclability Potential In %: 3

Nbr. Of Units In Pkg.: 1

Take-back: No

Customs Code: 8538908180

Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator

Isolation Voltage300 V DC between channels1400 V DC between channels and ground, 1400 V DC between channels and bus

Measurement Resolution0.35 mV +/- 10 V, 0.35 mV +/- 5 V, 0.35 mV 0...10 V, 0.35 mV 0...5 V, 0.35 mV 1...5 V0.92 µA +/- 20 mA, 0.92 µA 0...20 mA, 0.92 µA 4...20 mA

Status Led1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O

Certificate AgencyCE, RCM, CSA, EAC, Merchant Navy, UL

Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3052009697

Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.9763878788

Local Data StatusPublishable

Return IndicatorY

Stock Policy2

ServiceabilityNo

Field Service DivisionIDIBS

Weee ScopeOut

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI2311046EN

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeNo

Rohs Eur Conformity Date2438

China Rohs In ScopeYes

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier1

Function OptionStandard

Market SegmentationIndustrial

Common Mode Rejection90 dB

Electrical Connection20 ways 1 connector

Mtbf Reliability1200000 H

Precision Of Internal Conversion Resistor0.1 % - 15 ppm/°C

Product Or Component Typeanalog input module

Range Of ProductModicon X80

ReturnabilityYes

Software Versionv5.9.4

Total Lifecycle Carbon Footprint81 kg CO2 eq.

Vibration Resistance3 gn

Database Version2022-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201

Functional-unit UnitUnit

Energy Consumption On Product Lifetime In Kwh89.8776

Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS

Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS

Analog/Digital Conversion24 bits

Package Weight(Lbs)172.000 g

Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Storage: -40-85 °C, -40-85 °C

Take Back: No

China Rohs Regulation: X

Carbon Footprint: 80.949064503

Circularity Profile: ENVEOLI2311046EN

Eu Rohs Directive: Compliant By Exemption

Operating Altitude: 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor

Packaging Without Single Use Plastic: Yes

Relative Humidity: 5-95 % 55-55 °C without condensation

Pep Verification Date: 2023-11-01

Psr Version: PSR-0005-ed2-2016 03 29

Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

Ambient Air Temperature For Operation0-60 °C

Environmental DisclosureENVPEP2311046EN

Ip Degree Of ProtectionIP20

Packaging Made With Recycled CardboardYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Pep CodeENVPEP2311046EN

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: analog input module

Range Of ProductModicon X80

ETIM

ETIM 8: EC001420

ETIM 9EC001420

Surge Protection And Filtering Attributes

Type Of Filter: first order digital filtering

Contractual Warranty Attributes

Warranty Period: 18 months

Warranty18 months

Input Attributes

Analogue Input Type: current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage +/- 5 V, voltage 0...10 V, voltage 0...5 V, voltage 1...5 V

Permitted Overload On Inputs: +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA, +/- 90 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA

Analogue Input Resolution: 16 bits

Input Level: high level

Input Output Isolationisolated, isolated

Analogue Input Number4

Input Impedance10 MOhm in voltage mode250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
