Telemecanique Sensors

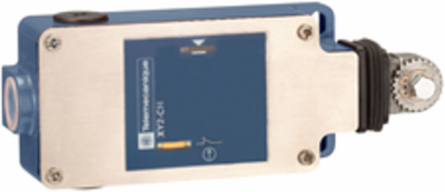

Telemecanique Sensors XY2CH33010 Safety pull rope switch XY2CH, 1NC+1NO

  • MPN: XY2CH33010
  • PPN: TES-XY2CH33010

CAD

$775.77

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Safety pull rope switch XY2CH, 1NC+1NO

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity1
Commercial statusCommercialised

Complementary

Local signallingWithout pilot light
Cover materialStainless steel
Contacts type and composition1 NC + 1 NO
Trigger cable anchor pointRH or LH side
MarkingCE
Resistance across terminals25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Body materialZamak
ResetWithout
Contact operationSnap action
Connections - terminalsScrew clamp terminal, 1 x 0.5...2 x 1.5 mm²
Positive openingWith conforming to IEC 60947-5-1

Environment

StandardsIEC 60947-5-1
Protective treatmentTC
IP degree of protectionIP65 conforming to IEC 60529
Product certificationsUL category NISD emergency stop devices, CCC
Vibration resistance10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn 11 ms conforming to IEC 60068-2-27

Main

Range of productTelemecanique Emergency stop rope pull switches XY2C
Device short nameXY2CH
Overvoltage categoryClass I conforming to IEC 61140, class I conforming to NF C 20-030
Product or component typeSimple stop rope pull switch
Housing colourBlue
Safety pull rope switch XY2CH, 1NC+1NO
