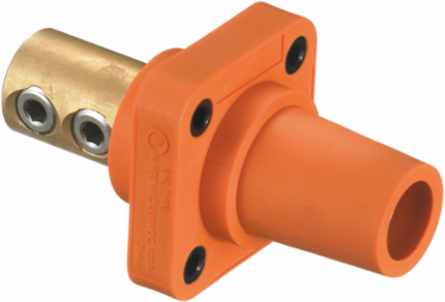

Bryant HBLFRO Heavy Duty Female Receptacle, 400A 600V AC/DC, 1-Pole, Orange
- MPN: HBLFRO
- UPC: 783585112633
- PPN: HBL-HBLFRO
- UNSPSC: 39121406
CAD
$78.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Single Conductor, Set Screw, Orange
Features
- Industrial Grade
- Female Receptacle
- 300/400A 600V AC/DC
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.300 in
- Performance
- Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
- Application
- High Ampacity Connections
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 1-Pole
- Phase
- Single Phase
- Standard
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Wattage
- 240000
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard Sized Product
- Number Of Poles
- 1-Pole
- Style
- Female Double Set Screw
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Threaded Thru-Hole
- Material
- Elastomer / Elastomeric
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 18.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585112632
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating400 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating400 A
ColorOrange
NEMA RatingNon-NEMA
Number of Wires1-Wire
Special FeaturesStandard
TypeReceptacle
Wire Size#4 AWG to #4/0 AWG
ConnectivityDouble Set Screw
Nema RatingNon-NEMA
Number Of Wires1-Wire
Description - InvoiceSINGLEPOLE, 300/400A FEM RCPT, SCREW, OR
Harmonization Code8536698000
MSDS FlagNo
Current Rating400 A
Series16 Series
BOX SIZE5.400x22.400x11.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585112633
Case Weight8.453 lb.
Lowest Level UOMEach
Pallet Height43.200 in
Pallet Weight1083.600 lb.
Certifications
- EU RoHS Indicator
- Yes
