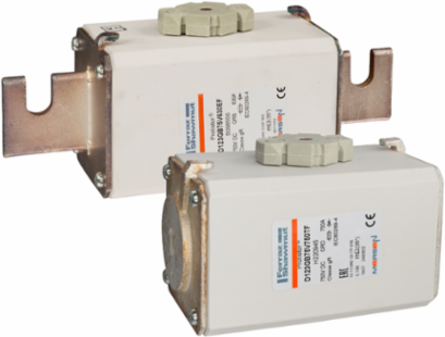

Mersen Q078191 Protistor Size 123 Grit 700 A 750 VDC Blade Contacts with Striker
- MPN: Q078191
- PPN: FER-Q078191
CAD
$3146.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 750 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Bolted |
| Design Details | gRB |
| Indication System Type | Striker |
| Connection/Terminal Type | Open Slot Blades |
| Width | 2.87 in |
| Height | 3.03 in |
| Ampere Rating | 700 A |
|---|---|
| AC or DC | DC |
| Fuse Size | 123 |
| Max. Rated Breaking Capacity DC | 100 kA |
| Indication System | Yes |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 8.11 in |
| Weight | 4.63 lb |
