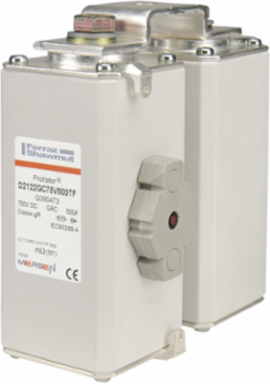

Mersen T220955 Protistor 2x122 Semiconductor Protection Fuse, 900 A, 750 VDC, gR
- MPN: T220955
- PPN: FER-T220955
CAD
$4625.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
Specifications
Key Specifications
| Rated voltage DC IEC | 750 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Bolted |
| Max. Rated Breaking Capacity DC | 100 kA |
| Indication System | Yes |
| Connection/Terminal Material | Brass |
| Body/Insulating Material | Ceramic |
| Width | 5.16 in |
| Height | 2.48 in |
| Ampere Rating | 900 A |
|---|---|
| AC or DC | DC |
| Fuse Size | 2x122 |
| Clearing I2t At Rated Voltage | 16000000 A²s |
| Design Details | gRD |
| Indication System Type | Striker |
| Connection/Terminal Type | Flush ends |
| Power Dissipation at Rated Current Value | 180 W |
| Length | 5.83 in |
| Weight | 6.173 lb |
