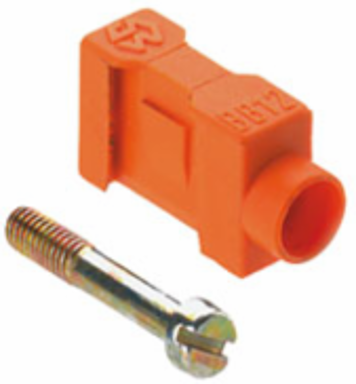

Weidmuller 1593450000 SLA BB12R OR
- MPN: 1593450000
- PPN: WDM-1593450000
CAD
$0.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 1
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 1.06 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Material Data
- Insulating material
- PBT GF
- Colour chart (similar)
- RAL 2000
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC002943
- eClass 9.0
- 27-44-04-92
- eClass 10.0
- 27-44-04-92
ETIM 7.0EC002943
eClass 9.127-44-04-92
UNSPSC30-21-18-01
Packing
- Packaging
- Box
- VPE width
- 55 mm
VPE length20 mm
VPE height70 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
