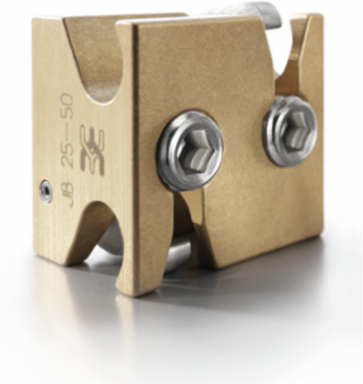

Weidmuller 1547500000 JB 25-50
- MPN: 1547500000
- PPN: WDM-1547500000
CAD
$53.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
WPAK, Potential equalisation block, Rated cross-section: Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 33 mm |
|---|---|
| Height | 32 mm |
| Depth | 24 mm |
| Net weight | 134.505 g |
| Width (inches) | 1.299 inch |
|---|---|
| Height (inches) | 1.26 inch |
| Depth (inches) | 0.945 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Type of mounting | when screwed in |
|---|
Material Data
| Material | Brass |
|---|
| Colour | Brass coloured |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
Product Information
| Product information | Qualfiedin acc. IEC 60947-7-2, Can be used for functional equipotential bonding and protective equipotentail bonding Mounting on cable trench with M6x9 screw |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Ambient temperature | -40°C bis +75°C |
| Storage temperature, min. | 10 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
Rating Data
| Pollution severity | 3 |
|---|
Conductors For Clamping (Rated Connection)
| Clamping range, max. | 50 mm² |
|---|---|
| Clamping screw | M 6 |
| Number of connections | 2 |
| Tightening torque, min. | 5 Nm |
| Wire connection cross section, finely stranded, max. | 50 mm² |
| Clamping range, min. | 10 mm² |
|---|---|
| Connection direction | on side |
| Stripping length | 33 mm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded, min. | 10 mm² |
