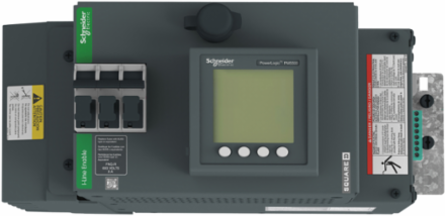

Square D ICWR263X5563 I-Line Enable Module, PM5563 Power Meter, 600VAC, wide side right, w/CT shorting block, dual E/N + Modbus, 6in space
- MPN: ICWR263X5563
- PPN: SCH-ICWR263X5563
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line Enable Module, PM5563 Power Meter, 600VAC, wide side right, w/CT shorting block, dual E/N + Modbus, 6in space
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Communications & Management Attributes
- Communication Service
- Ethernet Modbus TCP/IP server
Important Information Attributes
- Mounting Support
- bottom of enclosure, direct mounting on base unit
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 21 kg CO2 eq., 21.39976923415453
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 105 kg CO2 eq., 104.8794483185373
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2409033_V1
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Concentrator Compatibility
- panelboard
- Network Frequency
- 50/60 Hz
- Range Of Product
- I-Line
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 392 kg CO2 eq.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; United States, US
- Recyclability Potential In %
- 53
- Package Weight(Lbs)
- 9.525 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.09635051385829346, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]265 kg CO2 eq., 265.4434303315881
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee Product Category5
Eoli Availability DisplayYes
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2426
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Mounting ModeI-Line
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2409033EN
Pep Verification Date2024-11-17
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; United States, US
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; United States, US
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 391.8189983981382
- Environmental Disclosure
- ENVPEP2409033EN
- Packaging Made With Recycled Cardboard
- No
- Pep Code
- ENVPEP2409033EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2409033_V1
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep Verification Date2024-11-17
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Range Of Product
- I-Line
